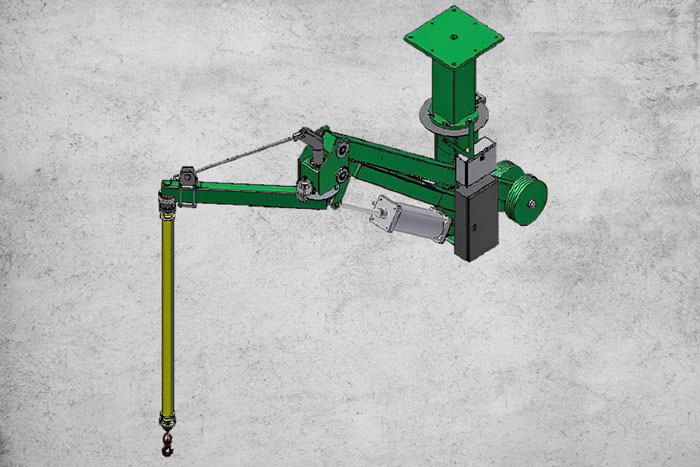

Ceiling-Mounted Solution with Pneumatic Strength and Smart Electronic Control
The overhead rail-mounted Liftronic® Air offers the perfect combination of pneumatic power and intelligent electronic control—all while keeping your floor space clear.

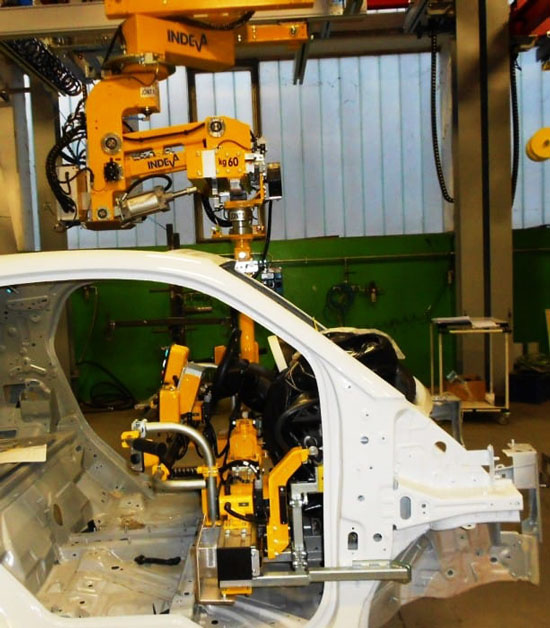

Mounted to a ceiling rail system, it allows smooth, controlled movement across large work areas and is ideal for handling offset or heavy loads with precision and safety. This setup is especially suited for production environments where efficiency, flexibility, and ergonomics matter most.
Main Features
- Air pressure 0,65 MPa (6,5 bar)
- Power supply 115/230V A/C 50/60Hz
- Power consumption 100VA
- Enclosure protection IP54
- Noise level < 70 dB(A)
- Lifting capacity limiter
- Lift speed from 15 to 30 m/min
- Main column axis brake
- Intermediate joint axis brake
- Column rotation 360°
- Tool axis rotation 550°
- Slow descent in case of pressure failure
- Balancing type: load preset or self balancing (it depends from the tooling)
