Ergonomic vacuum grippers
We recommend our vacuum grippers for materials that have relatively smooth, compact surfaces, for example barrels, panes, windscreens, or containers. These grippers do not run on electricity but on clean and dry compressed air, which means they are quieter and safer. Here are a few examples of the many vacuum grippers that we have produced through the years.

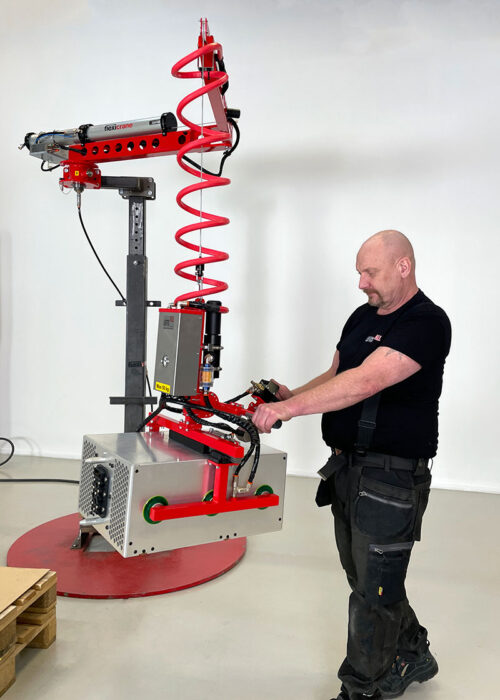

Lifting Tool for Electronic Cabinets
89-12390
- Maximum capacity: 50 kg / 110 lbs
- Control: proportional speed control (PSH)
- Weight: 14.8 kg / 33 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12390
- Serial no: A7261

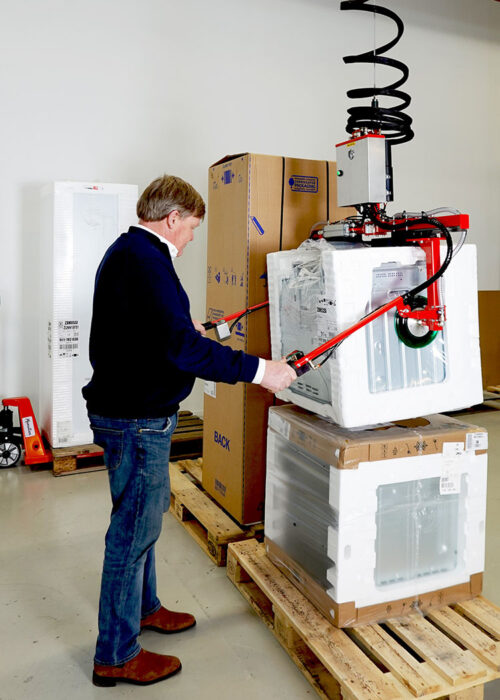

Lifting Tool for Appliances
89-12396
- Maximum capacity: 85 kg / 187 lbs
- Controls: proportional speed control (PSH)
- Weight: 29 kg / 64 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12396
- Serial no: A7282

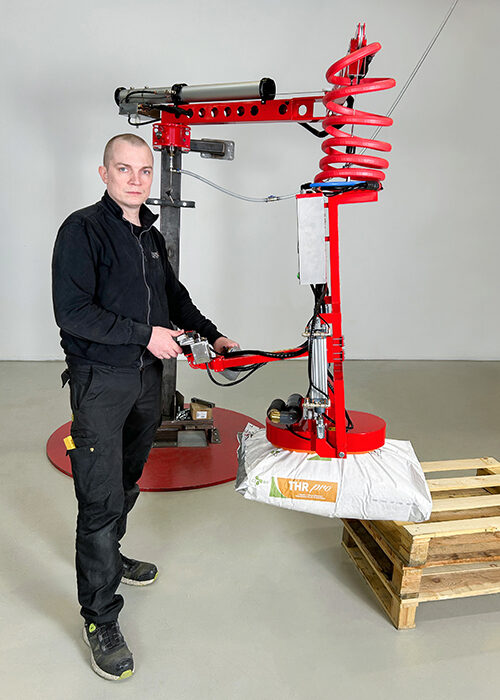

Sack gripper with tilt and rotation
89-12503
- Maximum capacity: 27 kg / 60 lbs
- Controls: proportional speed control (PSH)
- Own weight: 38 kg / 84 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12503
- Serial no: A7580

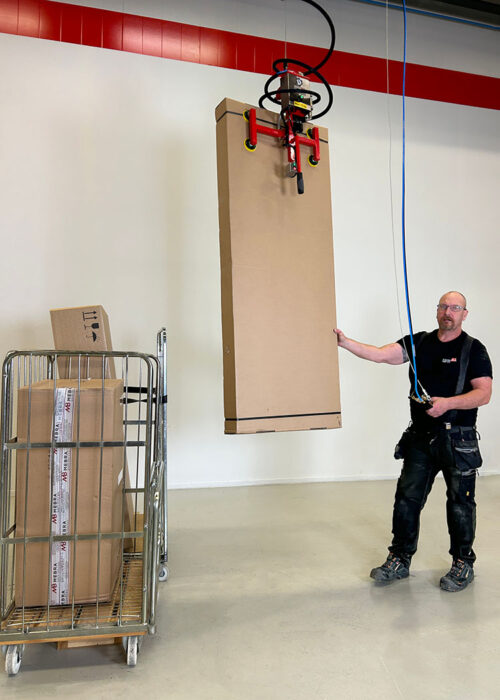

Lifting tool for boxes
89-12338
- Maximum capacity: 12 kg / 26 lbs
- Control: proportional speed control (PSH)
- Weight: 9 kg / 20 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12338
- Serial no: A7153

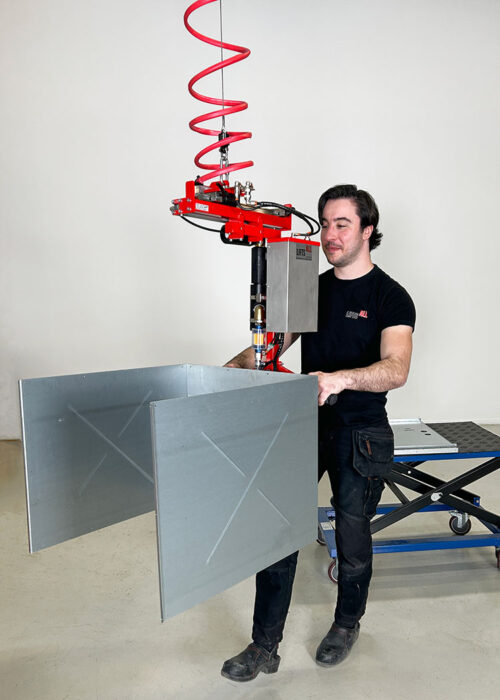

Lifting Tool for Metal Covers
89-12348
- Maximum load: 15 kg / 33 lbs
- Control: balancing
- Weight: -
- Media: 6–7 bar / 90–100 psi
- Article number: 89-12348
- Serial number: A7170

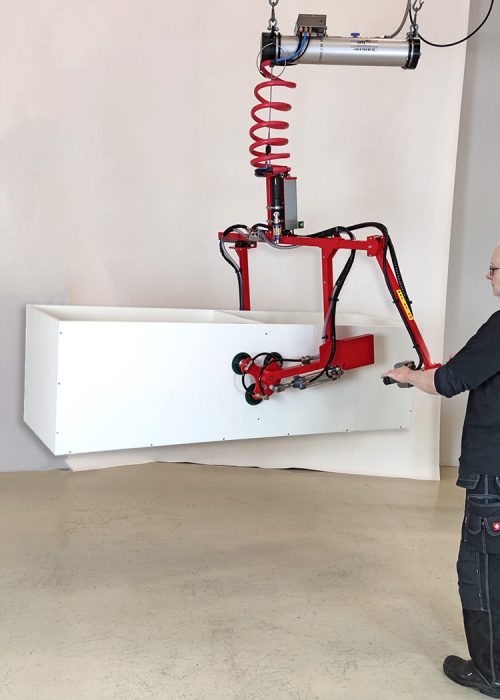

Cabinet lift
89-12071
- Maximum capacity: 80 kg / 176 lbs
- Control system: proportional speed control (PSH)
- Weight: 60 kg / 132 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12071
- Serial no: A6617

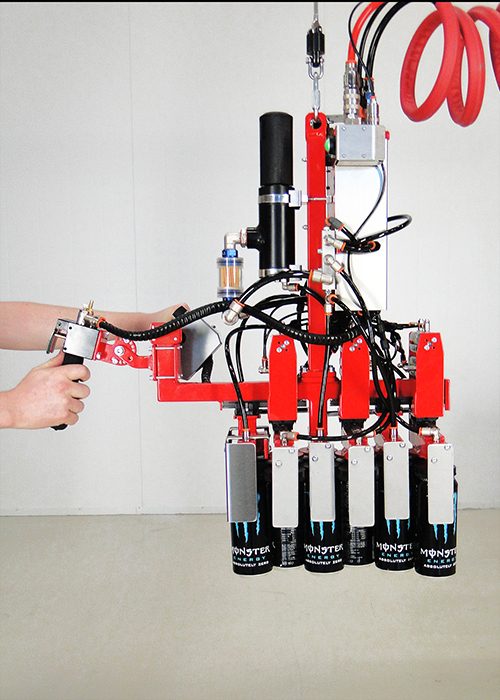

CAN GRIPPER
89-10541
- Maximum capacity: 8 kg / 18 lbs
- Control system: proportional speed control (PSH)
- Weight: 25 kg / 55 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10541
- Serial no: 5028

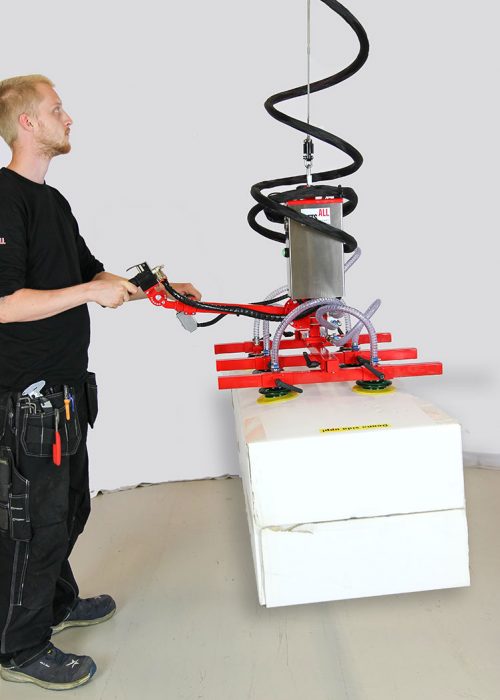

Cardboard box gripper
89-11980
- Maximum capacity: 56 kg / 123 lbs
- Controls: proportional speed control (PSH)
- Weight: 17.5 kg / 39 lbs
- Article no: 89-11980
- Serial no: A6531

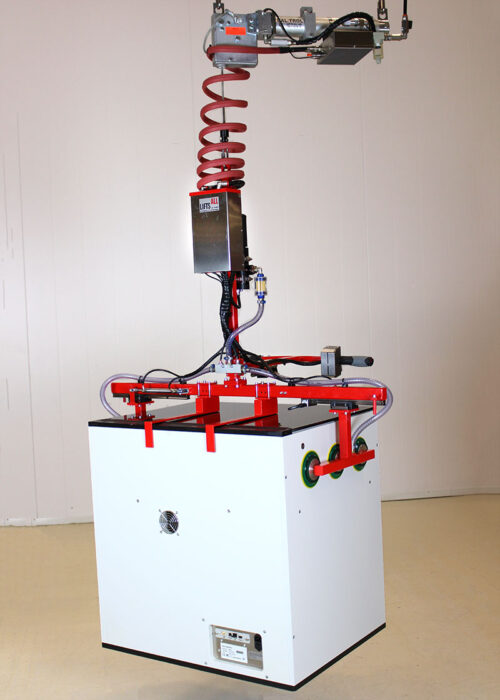

Lifting tool for printer chassies
- Maximum capacity: 110 kg / 243 lbs
- Control system: proportional speed control (PSH)
- Weight: 19 kg / 42 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11675
- Serial no: 5913
Drum gripper for pharmaceuticals
89-10907
- Maximum capacity: 85 kg / 187 lbs
- Control system: proportional speed control (PSH)
- Weight: 14.5 kg / 32 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10907
- Serial no: 5254
Drum Gripper with Equalizer
89-12313
- Maximum capacity: 60 kg / 132 lbs
- Controls: balancing with Equalizer
- Weight: 10 kg / 22 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12313
- Serial no: A7106-D

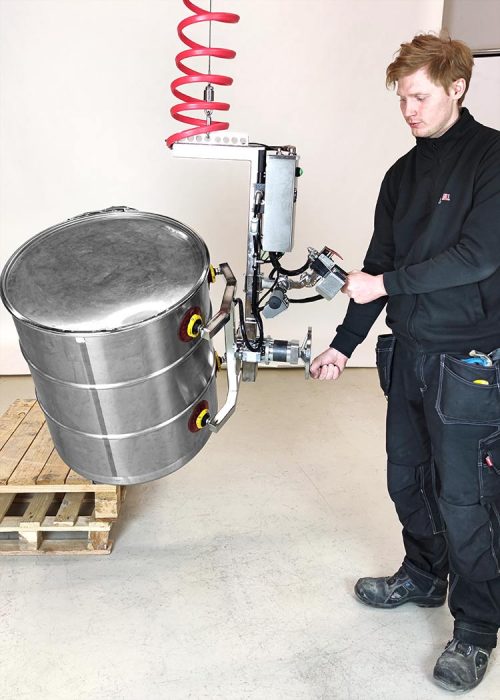

Drum lift
89-12055
- Maximum capacity: 25 kg / 55 lbs
- Controls: proportional speed control (PSH)
- Weight: 16.5 kg / 36 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12055
- Serial no: A6609

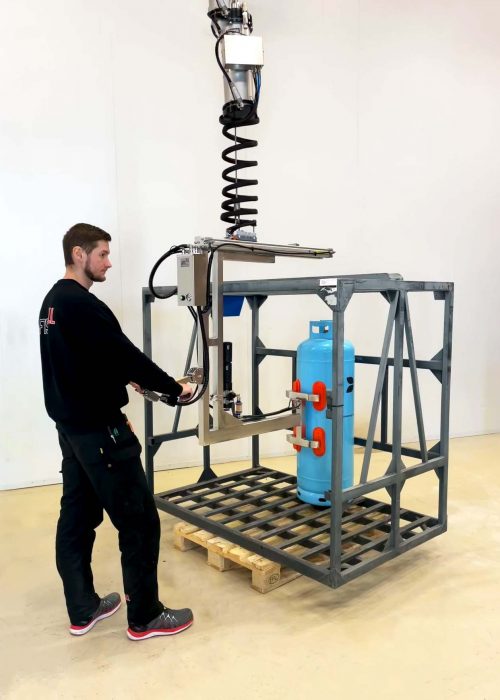

Gripper for Gas Cylinders
89-12170
- Maximum capacity: 85 kg / 187 lbs
- Controls: proportional speed control (PSH)
- Own weight: 45 kg / 99 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12170
- Serial no: A6820

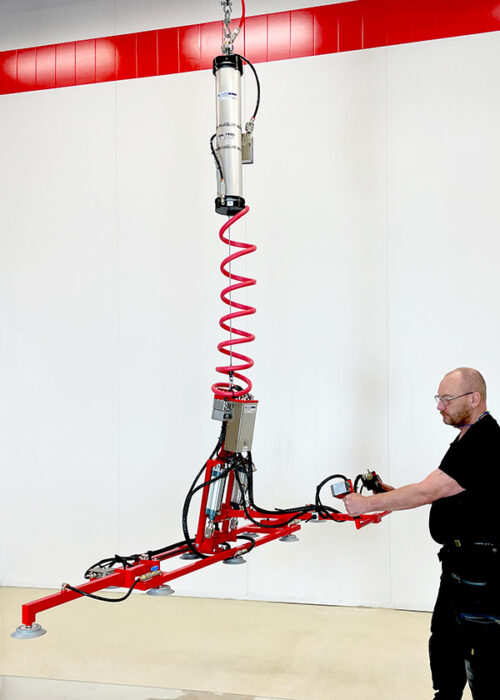

Gripper for Glass Panes
89-12173
- Maximum capacity: 100 kg / 220 lbs
- Controls: proportional speed control (PSH)
- Own weight: 45 kg / 99 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12173
- Serial no: A6832

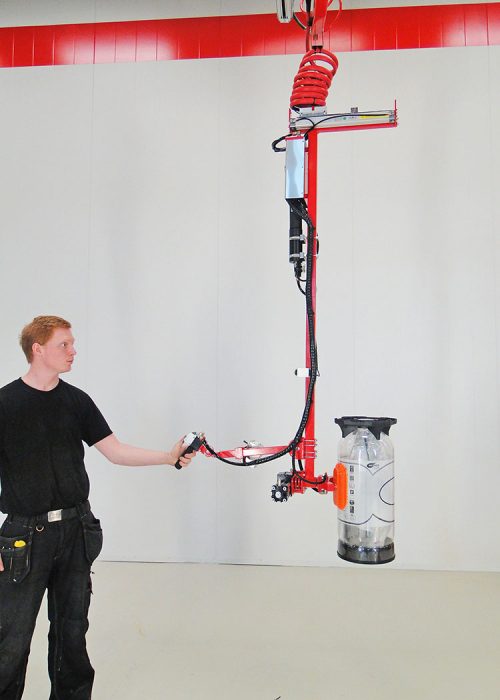

Gripper for kegs
89-10525
- Maximum capacity: 35 kg / 77 lbs
- Control system: proportional speed control (PSH)
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10525
- Serial no: 4991

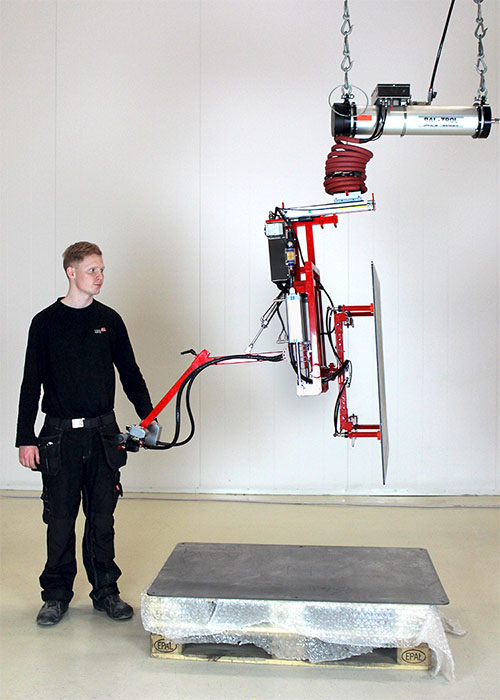

Gripper for metal sheets
5947
- Maximum capacity kg: 40 / 50
- Maximum capacity lbs: 88 / 110
- Control system: proportional speed control (PSH)
- Weight: 38 kg / 84 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11760
- Serial no: 5947
Gripper for pipes
89-12148
- Maximum capacity: 18 kg / 40 lbs
- Controls: balancing
- Own weight: 9 kg / 20 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12148
- Serial no: A6790

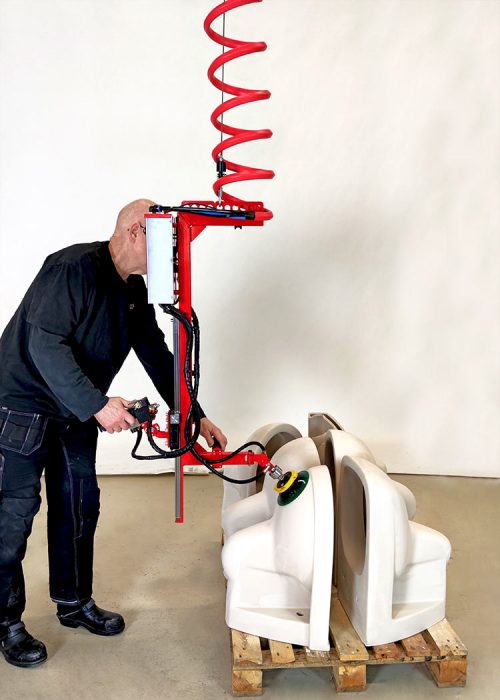

Gripper for sanitary ware
89-12030
- Maximum capacity: 25 kg / 55 lbs
- Control system: proportional speed control (PSH)
- Weight: 15.6 kg / 34 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12030
- Serial no: A6558

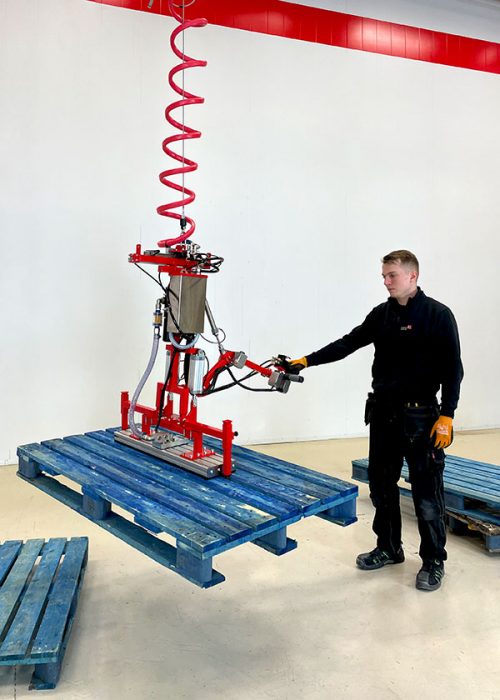

Pallet Gripper 89-12178:
Efficient
Palletizing Solutions
- Maximum capacity: 45 kg / 99 lbs
- Controls: proportional speed control (PSH)
- Own weight: 32 kg / 70 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12178
- Serial no: A6844

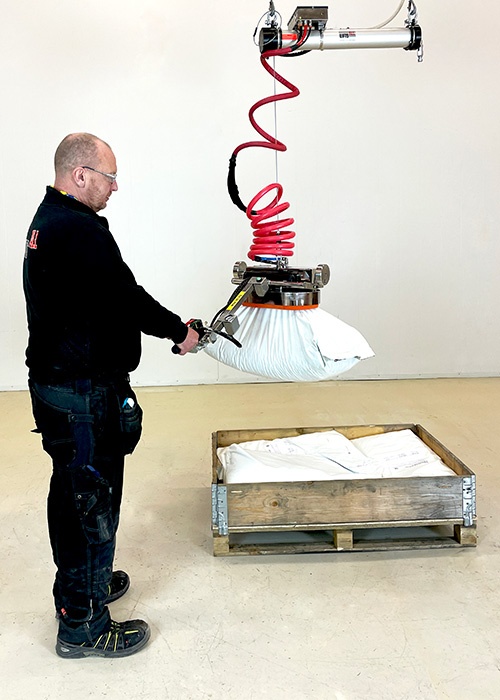

Sack Gripper
89-12190
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Own weight: 16.5 kg / 36 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12190
- Serial no: A6893

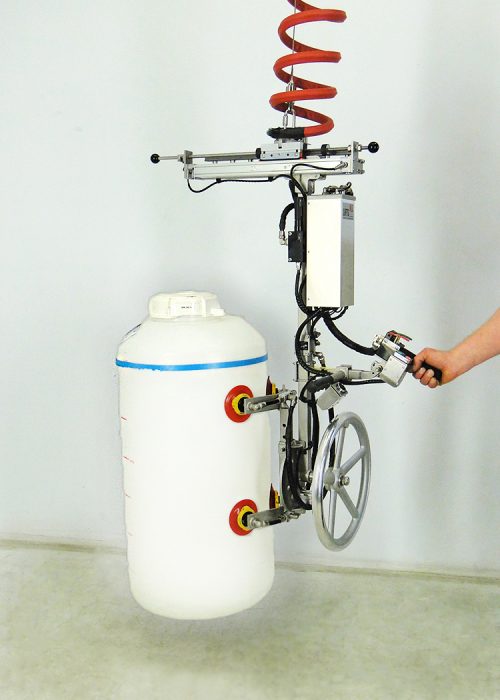

CONTAINER GRIPPER
4371
- Maximum capacity: 35 kg / 77 lbs
- Control system: proportional speed control (PSH)
- Weight: 29 kg / 64 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 4371

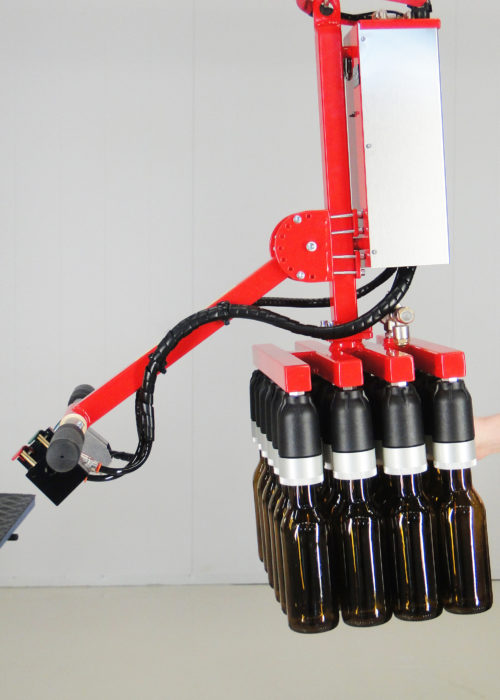

BOTTLE GRIPPER
89-10638
- Maximum capacity: 15 kg / 33 lbs
- Control system: proportional speed control (PSH)
- Weight: 11 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10638
- Serial no: 5078

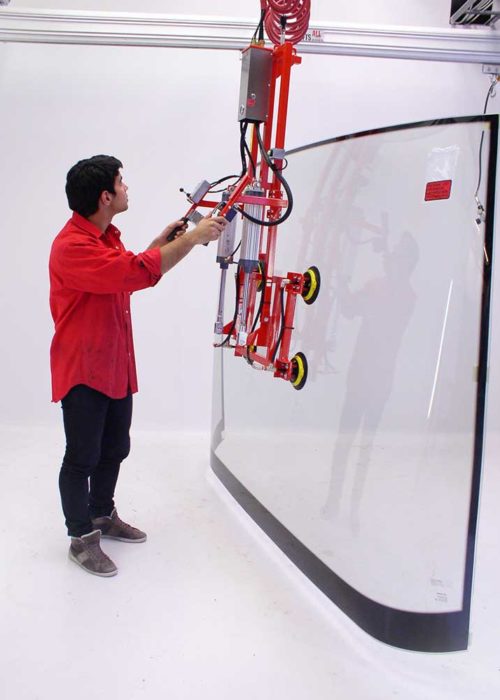

Windscreen lifter
89-11857
- Maximum capacity: 100 kg / 220 lbs
- Control system: proportional speed control (PSH)
- Weight: 40 kg / 88 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11857
- Serial no: 3108

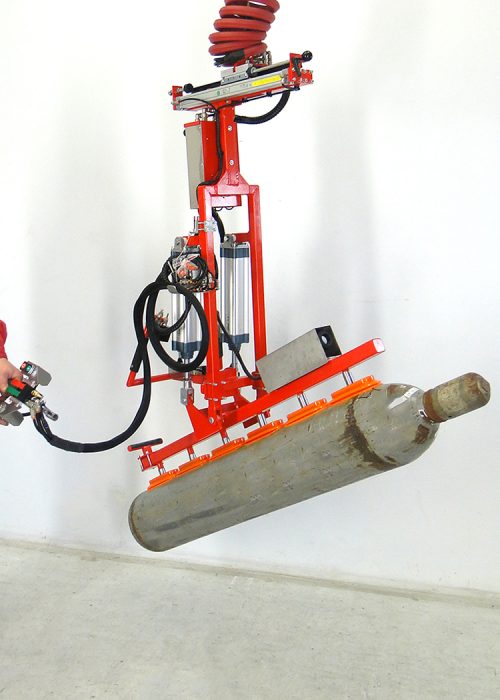

GAS TANK GRIPPER
4415
- Maximum capacity: 120 kg / 264 lbs
- Control system: proportional speed control (PSH)
- Weight: 46 kg / 101 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 4415

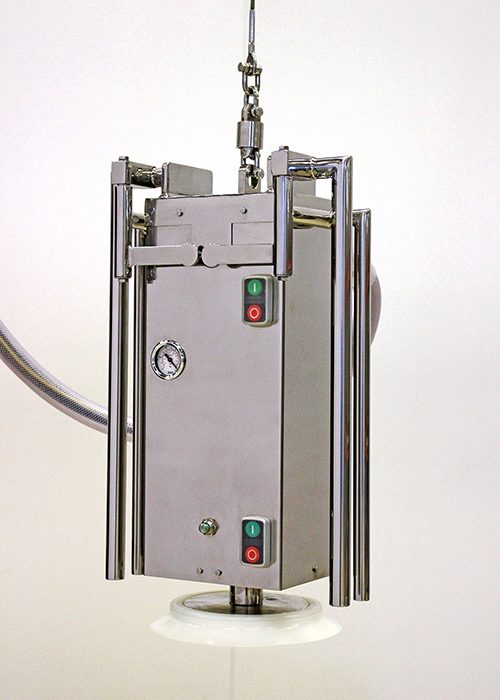

Drum gripper
89-11480
- Maximum capacity: 100 kg / 220 lbs
- Control system: proportional speed control (PSH)
- Weight: 14.5 kg / 32 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11480
- Serial no: 5822

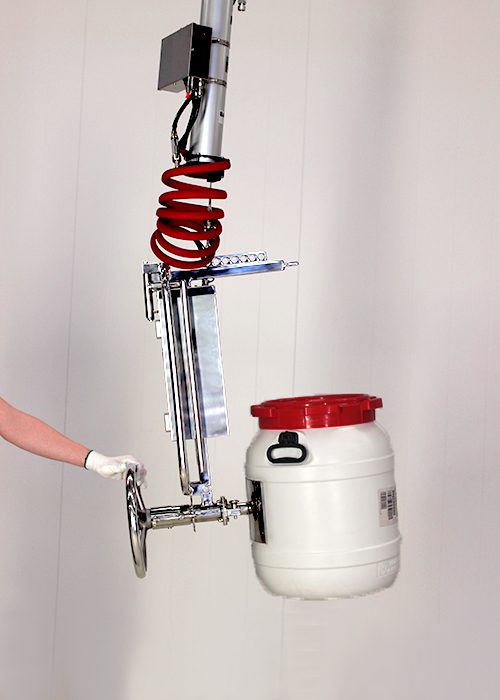

Drum and keg gripper
89-10911
- Maximum capacity: 30 kg / 66 lbs
- Control system: proportional speed control (PSH)
- Weight: 20 kg / 44 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10911
- Serial no: 5253

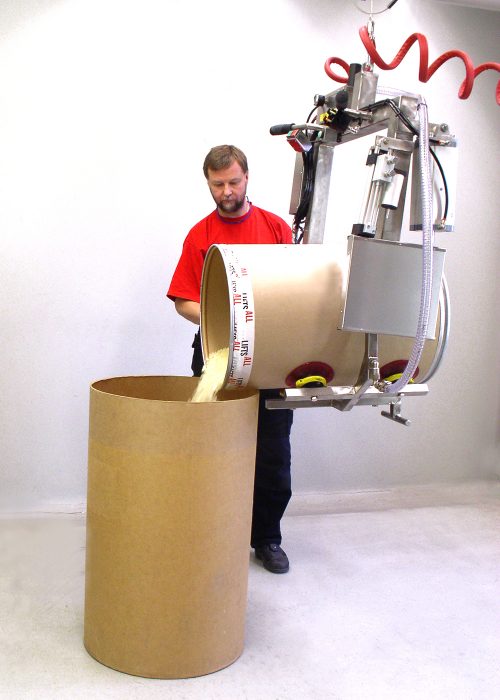

F&B DRUM GRIPPER
2988
- Maximum capacity: 100 kg / 220 lbs
- Control system: proportional speed control (PSH)
- Weight: 51 kg / 112 lbs
- Media: 6–7 bar / 90–100 psi
- Article number: -
- Serial number: 2988
