Ergonomic vacuum grippers
Our box lifter systems are designed to replace manual handling and reduce strain-related injuries. Learn how our vacuum and mechanical lifters support various industries, materials, and workplace needs. We offer comprehensive box lifter solutions for lifting cardboard boxes and all types of industrial containers, including crates. When forklifts are too bulky for your workspace, our compact box lifter systems fit perfectly and safely place boxes on high shelves, enabling high speed box handling in fast-paced environments.
Why Use Box Lifters?
-
Improve workplace safety – Box lifters eliminate heavy manual lifting, dramatically reducing the risk of back, shoulder and knee injuries from repetitive strain.
-
Increase efficiency – Ergonomic tools allow faster box handling and free employees to focus on other tasks.
-
Promote cost-effectiveness – Reduces injury-related costs and boosts productivity through consistent, reliable performance.

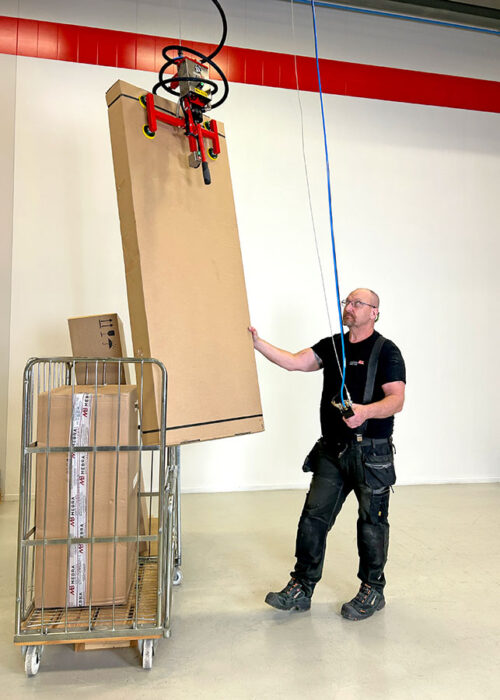

Lifting tool for boxes
89-12338
- Maximum capacity: 12 kg / 26 lbs
- Control: proportional speed control (PSH)
- Weight: 9 kg / 20 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12338
- Serial no: A7153
Combi-Gripper for Boxes
89-12283
- Maximum capacity: 50 kg / 110 lbs
- Control system: proportional speed control (PSH)
- Weight: 12.5 kg / 28 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12283
- Serial no: A7092
Cardboard box gripper
89-11980
- Maximum capacity: 56 kg / 123 lbs
- Controls: proportional speed control (PSH)
- Weight: 17.5 kg / 39 lbs
- Article no: 89-11980
- Serial no: A6531

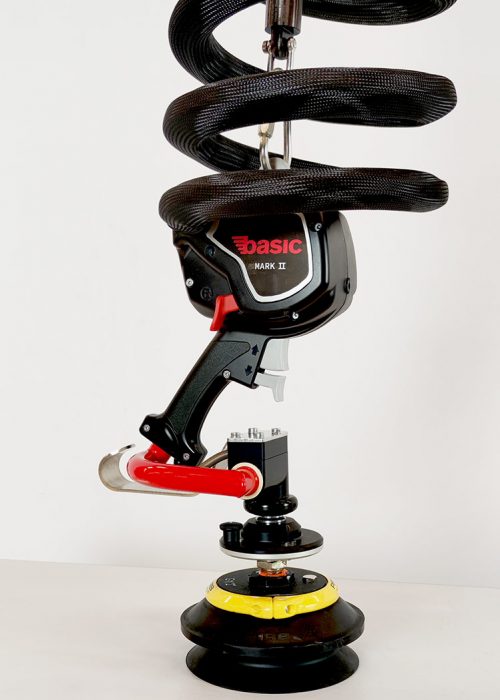

Basic – the versatile
vacuum gripper
- Maximum capacity: 35 / 50 kg | 77 / 110 lbs
- Lifting height: 1.5 m / 4′ 11"
- Media: 6–7 bar / 90–100 psi
- Rotation of load: Endless
- Noise level – carton boxes: 63 dB
- Noise level – airtight materials: 0 dB
- Article no (max 35 kg): 93-10034-MK2 (vertical), 93-10035-MK2 (horizontal)
- Article no (max 50 kg): 93-10003-MK2 (vertical), 93-10032-MK2 (horizontal)
Speedy Picker - warehouse
forklift
crane attachments
- Maximum capacity: 25 kg / 143 lbs / customized
- Lifts/hour: 100–120
- Controls: balancing or proportional speed control (PSH)
- Own weight: 300 kg, depending on the size of the compressor
- Power: 24 volt (48)
- Crane arm: 2000 mm FlexiCrane jib crane, with lock
- Truck model: Suitable for most class 2 (model 6) forklift trucks
- Article number: 89-11954
Manhattan Cardboard Box Gripper
89-11789
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Weight: -
- Media: 6–7 bar / 90–100 psi
- Article number: 89-11789
- Serial number: 5924
MANHATTAN BOX GRIPPER
89-10465
- Maximum capacity: 40 kg / 88 lbs
- Controls: proportional speed control (PSH)
- Weight: 77 kg / 170 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10465
- Serial no: 4947
A lifting tool for
boxes
- Maximum capacity: 30 kg / 66 lbs
- Control system: balancing
- Weight: 24 kg / 53 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10002
- Serial no: 4438
