PN Compatto Pneumatic Industrial Manipulators – Compact, Rigid, and Efficient
PN Compatto pneumatic industrial manipulators are designed for precise and reliable material handling in environments with space constraints and low ceilings. Featuring a rigid vertical arm, these manipulators offer excellent stability and control, making them ideal for lifting, rotating, and positioning loads in compact workstations.
Their compact structure and pneumatic operation ensure smooth, effortless movements, improving operator ergonomics and workplace safety. PN Compatto is the perfect solution for industries requiring efficient handling solutions within limited spaces—delivering high performance without compromising on flexibility.
Main Features
- Lift speed from 15 to 30 m/min
- Control: pneumatic
- Air pressure: min 6 bars
- Work Temperatures: from +5° to +50° C
- Noise level: < 70 dB
- Main column axis brake
- Intermediate joint axis brake
- Continuous column rotation
- Safety devices retain the load grip during pressure loss, allowing slow descent. Special brakes hold the arm and tool in place when idle.
Available options
- Rotating joint on the articulate axis
- System lock for the lift capacity
- Brake for up/down movement
- Double braking force on the main and intermediate axis
- Special painting
- Sliding trolley

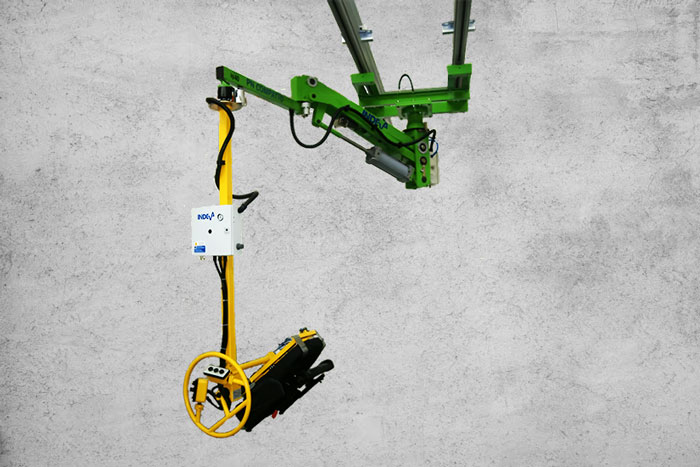

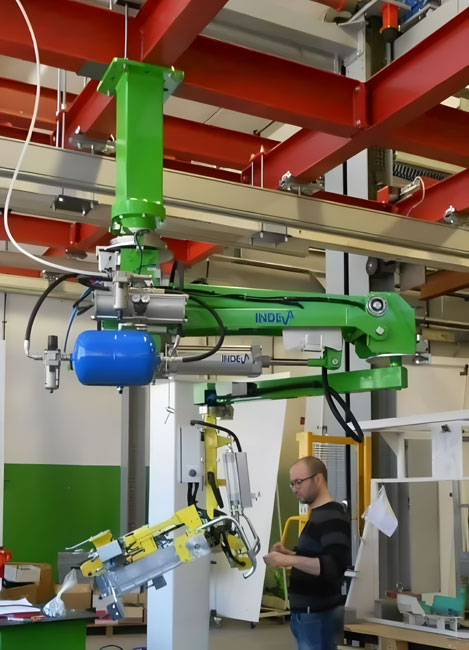

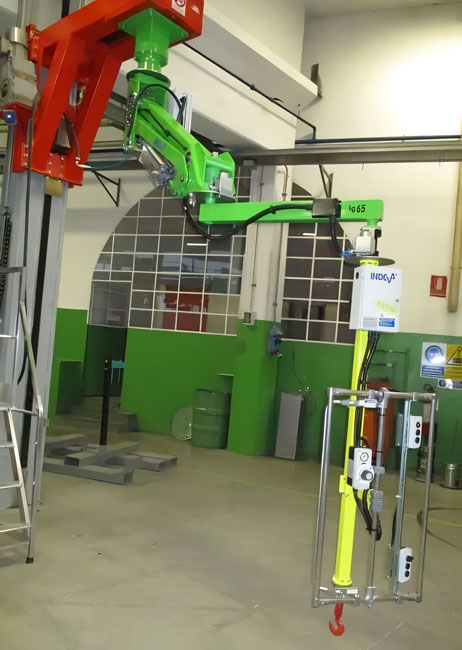

The PN Compatto pneumatic industrial manipulators feature a jointed arm mounted on an overhead rail, with a ceiling-mounted version also available for space-saving flexibility.
