Mechanical Grippers
General Data
Mechanical grippers are lifting tools that are designed to grip more complex objects, such as, gearboxes, engines, motors, bottles, and more. The grippers are constructed with ergonomics in mind and are easy to use. Here are a few examples of the many mechanical grippers that we have produced through the years.

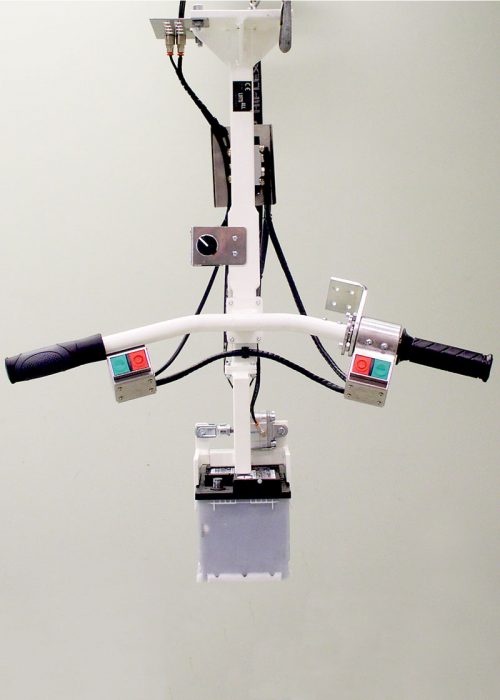

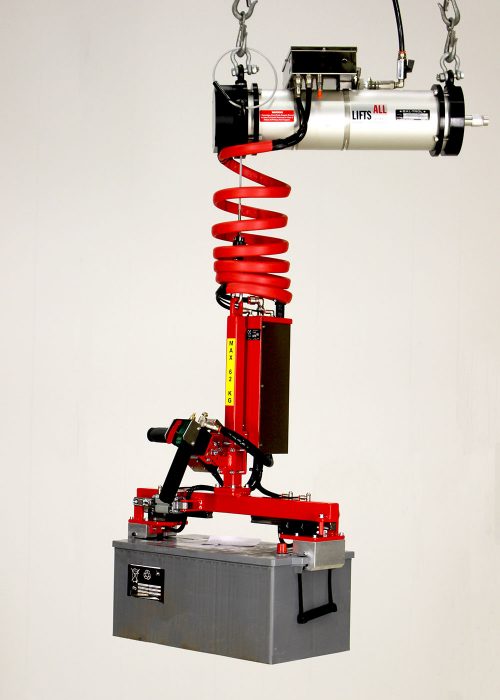

Battery Gripper
89-10768
- Maximum capacity: 62 kg / 137 lbs
- Controls: proportional speed control (PSH)
- Own weight: 13 kg / 29 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10768
- Serial no: 5165

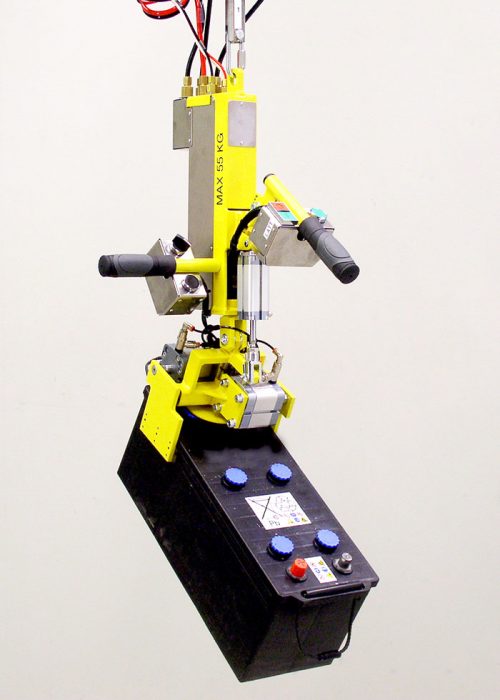

Battery Gripper
2426
- Maximum capacity: 55 kg / 121 lbs
- Controls: balancing
- Own weight: 13 kg / 29 lbs
- Media: 6–7 bar / 90–100 psi
- Serial no: 2426
Battery Gripper
2657
- Maximum capacity: 20 kg / 44 lbs
- Own weight: 13.5 kg / 30 lbs
- Controls: balancing
- Media: 6–7 bar / 90–100 psi
- Serial no: 2657

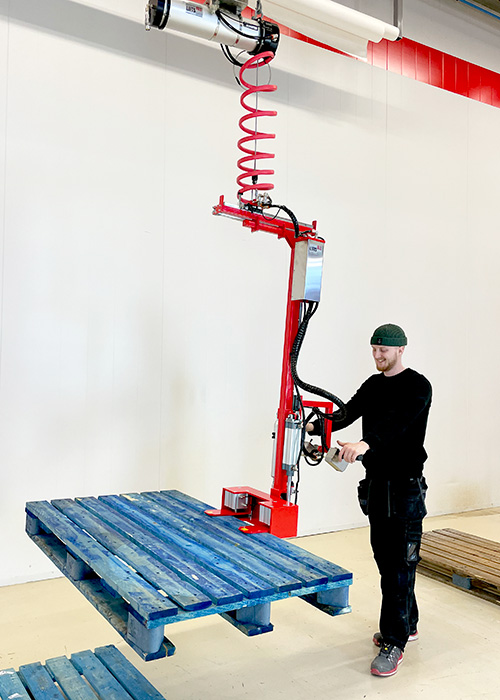

Pallet turner
89-12421
- Maximum capacity: 45 kg / 99 lbs
- Controls: proportional speed control (PSH)
- Own weight: 50 kg / 110 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12421 (alt. 89-12176)
- Serial no: A7356 (alt. A6842)
Gripper for Milling Cutter
Bodies
89-12254
- Maximum capacity: 27 kg / 59 lbs
- Control system: proportional speed control (PSH)
- Weight: 8.5 kg / 19 lbs
- Media: 6 bar / 90 psi
- Article no: 89-12254
- Serial no: 6976

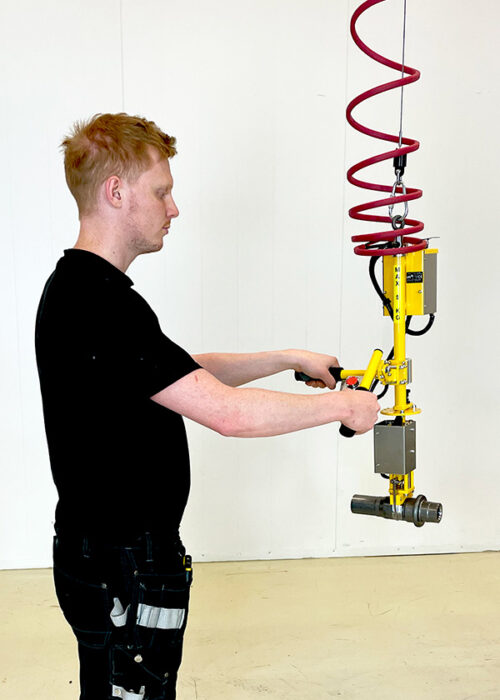

Gripper for shafts
89-12214
- Maximum capacity: 5 kg / 11 lbs
- Controls: balancing
- Own weight: 6.7 kg / 15 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12214
- Serial no: A6906

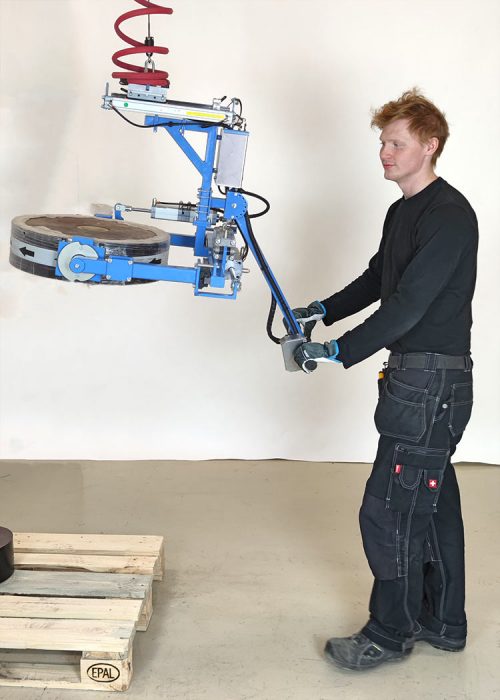

Lifting tool for laminate and
wood
veneer reels and rolls
- Maximum capacity: 38 kg / 84 lbs
- Control system: proportional speed control (PSH)
- Weight: 31 kg / 68 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11927
- Serial no: 6081

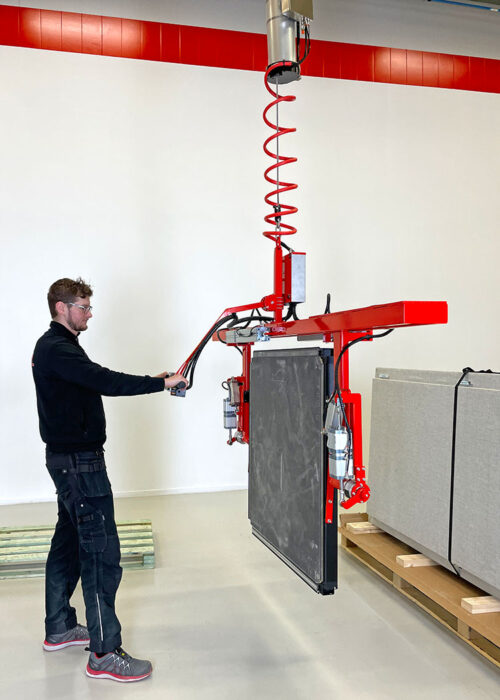

Lifting tool for structural elements
89-12275
- Maximum capacity: 85 kg / 187 lbs
- Control system: proportional speed control (PSH)
- Weight: 121 kg / 267 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12275
- Serial no: A7014
Gripper for metal parts 89-12120
- Maximum capacity: 11 kg / 24 lbs
- Controls: balancing
- Weight: 14.2 kg / 31 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12120
- Serial no: A6733

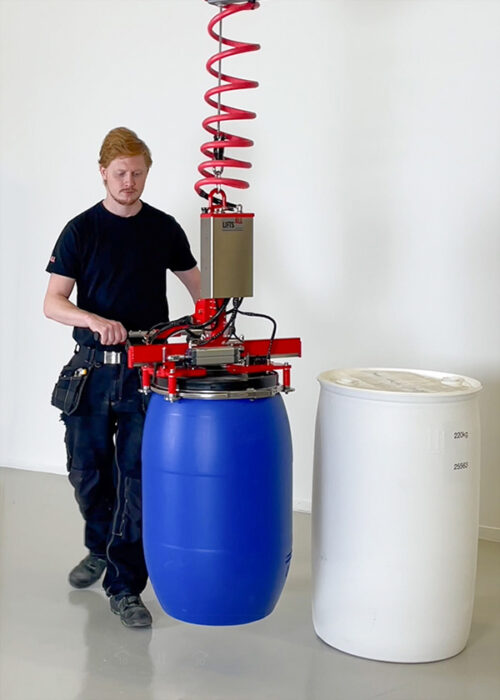

Drum gripper
89-12248
- Maximum capacity: 250 kg / 551 lbs
- Controls: proportional speed control (PSH)
- Weight: 31 kg / 68 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12248
- Serial no: A6966
Gripper for
bed frames
- Maximum capacity: 30 kg / 66 lbs
- Control system: proportional speed control (PSH)
- Weight: 30.3 kg / 67 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12031
- Serial no: A6573

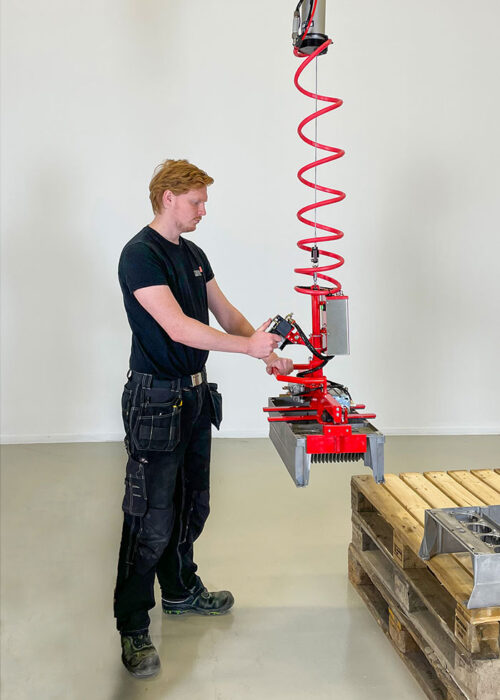

Gripper for electrical enclosures
89-12243
- Capacity: 18 kg / 40 lbs
- Controls: proportional speed control (PSH)
- Weight: 18.2 kg / 40 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12243
- Serial no: A6957

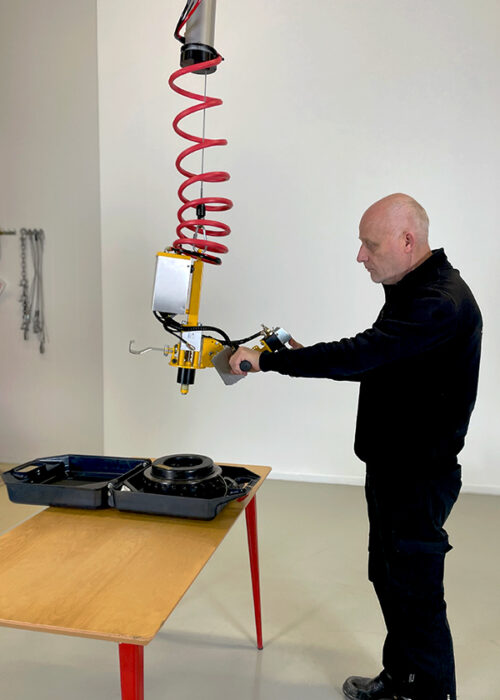

Gear wheel gripper 89-12296
- Maximum capacity: 5.5 kg / 12 lbs
- Controls: balancing
- Weight: 11 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12296
- Serial no: A7072
Lifting tool for Ring Gears
89-12264
- Maximum capacity: 8 kg / 18 lbs
- Controls: balancing
- Weight: 8.5 kg / 19 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12264
- Serial no: A6991

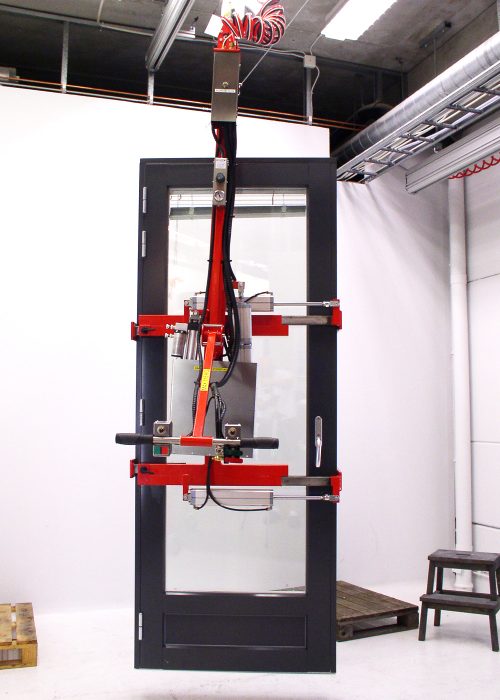

Door Gripper
89-12187
- Maximum capacity: 80 kg / 176 lbs
- Controls: proportional speed control (PSH)
- Own weight: 61 kg / 134 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12187
- Serial no: A6861

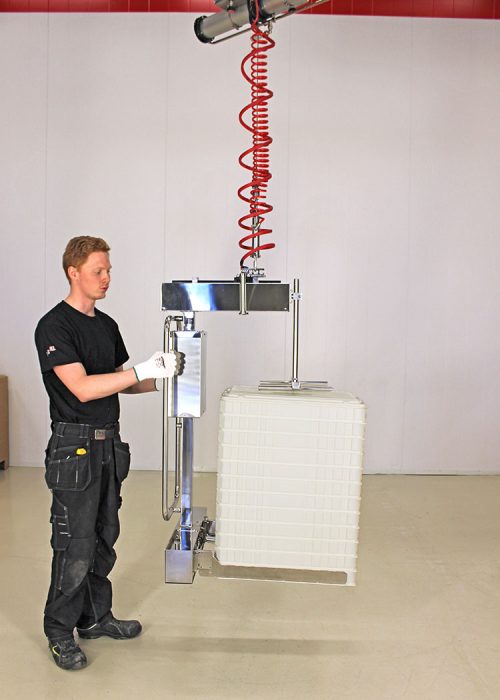

A lifting tool for
trays
- Maximum capacity: 32 kg / 71 lbs
- Control system: proportional speed control (PSH)
- Media: 6–7 bar / 90–100 psi
- Weight: 38 kg / 84 lbs
- Article no: 89-10861
- Serial no: 5220

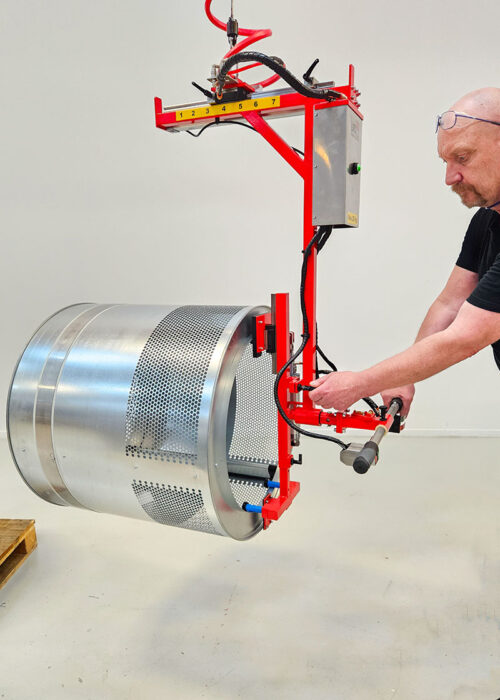

Gripper for Washing Machine Drums 89-12413
- Maximum capacity: 25 kg
- Control: proportional speed control (PSH)
- Weight: 21 kg
- Media: 6–7 bar
- Article no: 89-12413
- Serial no: A7323

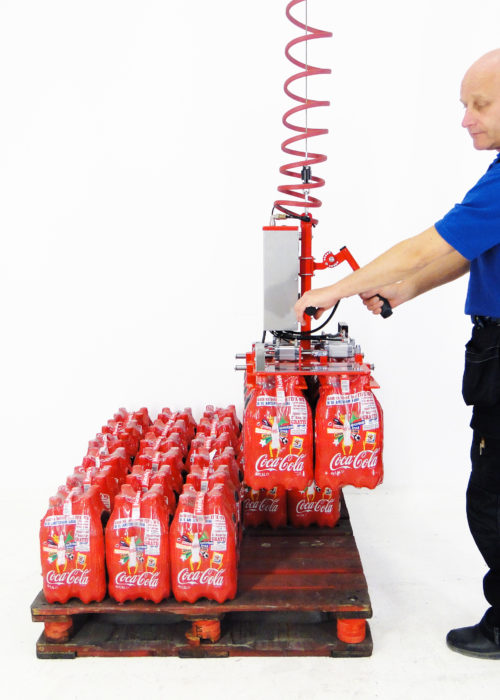

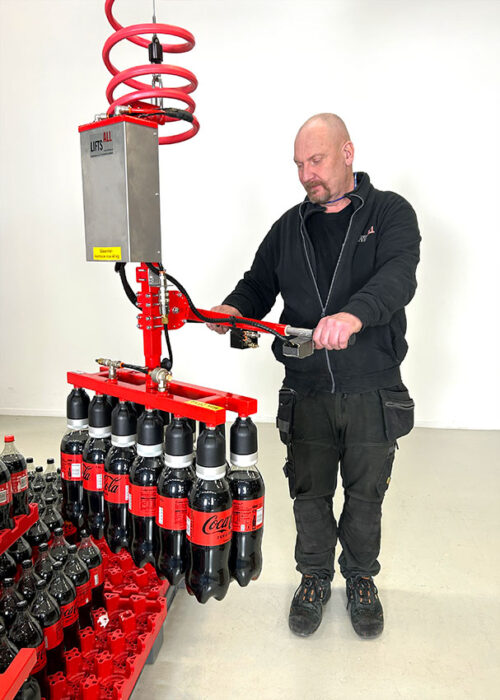

Lifting tool for Plastic Bottles
89-12380
- Maximum capacity kg: 18 / 31.5
- Maximum capacity lbs: 40 / 69
- Control: proportional speed control (PSH)
- Weight: 7.5 kg / 16 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12380
- Serial no: A7234

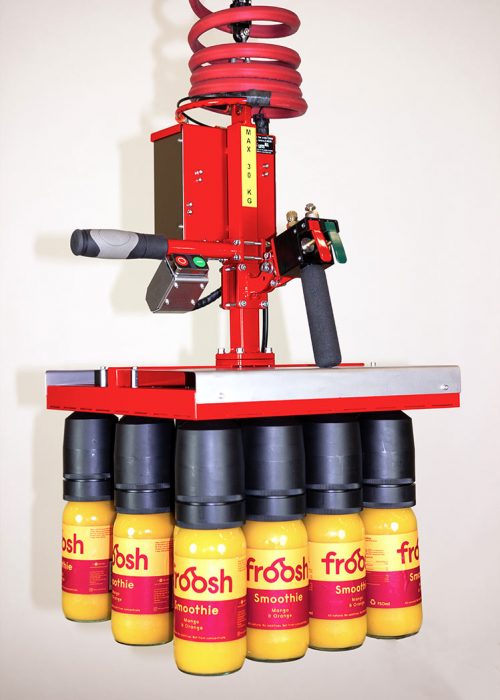

Gripper for glass bottles 89-12006
- Maximum capacity: 30 kg / 66 lbs
- Control system: proportional speed control (PSH)
- Weight: 23 kg / 51 lbs
- Media: Max 2 bar / 29 psi
- Article no: 89-12006
- Serial no: A6535
Lifting tool for Plastic Bottles
89-12380
- Maximum capacity kg: 18 / 31.5
- Maximum capacity lbs: 40 / 69
- Control: proportional speed control (PSH)
- Weight: 7.5 kg / 16 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12380
- Serial no: A7234

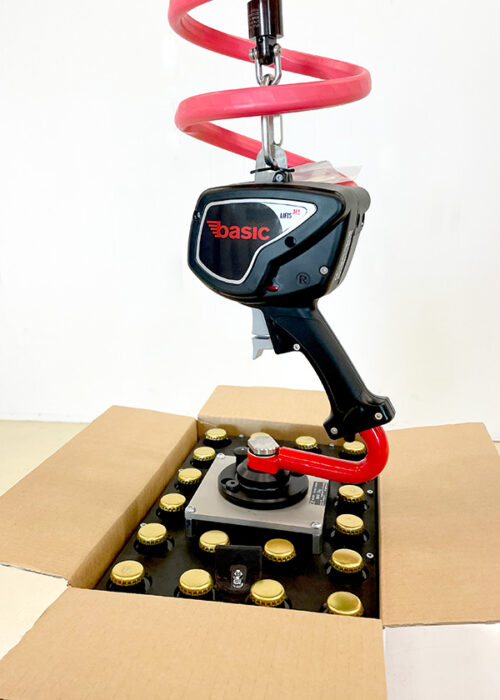

Basic Bottle Gripper
88-10063, 88-10032
- Maximum capacity: 15 kg / 33 lbs
- Trait: Attachment for Basic
- Media: 6–7 bar / 90–100 psi
- Article no: 88-10063, 88-10032

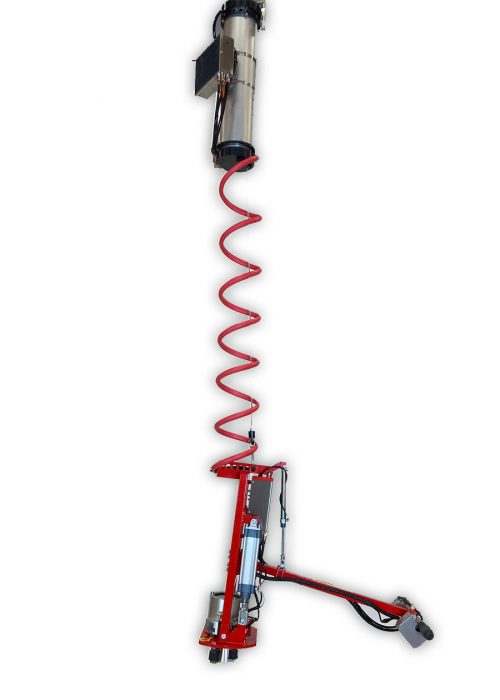

Sausage Skin Gripper
89-12142
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Weight: 30.8 kg / 68 lbs
- Media: 6–7 bar / 90–100 psi
- Article number: 89-12142
- Serial number: A6771

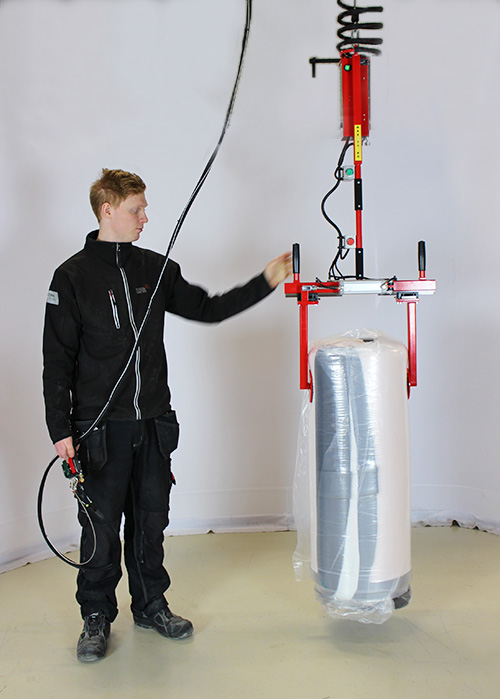

Mattress gripper
6016
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Weight: 14 kg / 31 lbs
- Media: 6–7 bar / 90–100 psi
- Article number: 89-11892
- Serial number: 6016
Lifting tool for
wheels
- Max load: 40 kg / 88 lbs
- Diameter: 600mm - 800mm / 15–22″
- Control system: proportional speed control (PSH)
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12039
- Serial no: A6581

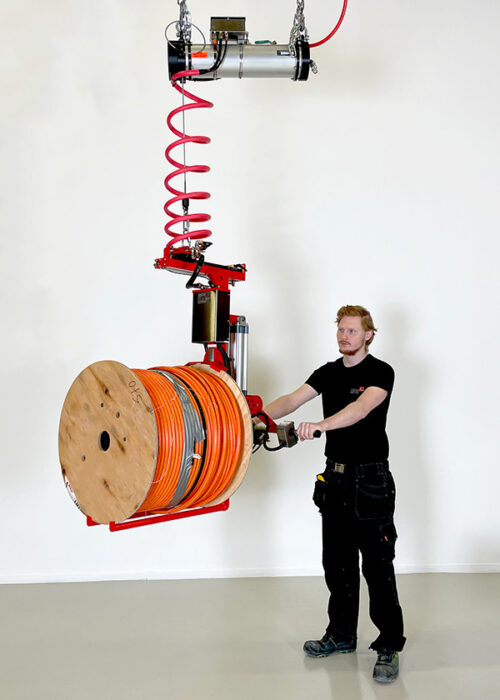

Gripper for fiber reels
89-12258
- Maximum capacity: 40 kg / 80 lbs
- Control: proportional speed control (PSH)
- Weight: 33 kg / 73 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12258
- Serial no: A6977

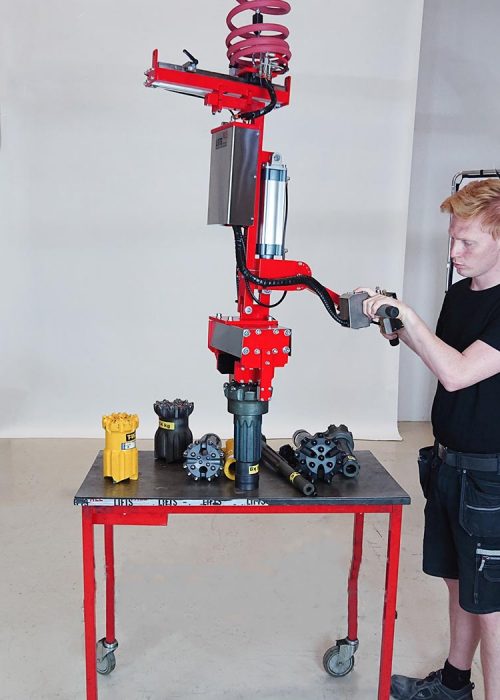

Drill bit gripper
89-11929
- Maximum capacity: 27 kg / 59 lbs
- Control system: proportional speed control (PSH)
- Weight: 15 kg / 33 lbs
- Media: 6–7 bar / 90–100 psi
- Article number: 89-11929
- Serial number: 6085, 6086
Gripper for fiber reels
89-12258
- Maximum capacity: 40 kg / 80 lbs
- Control: proportional speed control (PSH)
- Weight: 33 kg / 73 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12258
- Serial no: A6977

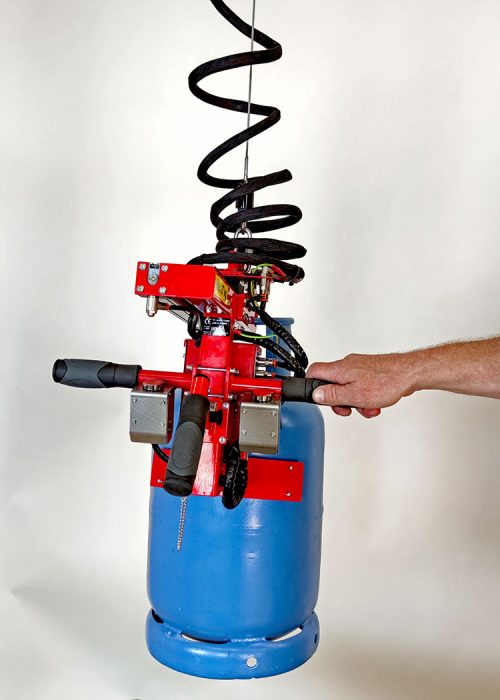

Gas cylinder gripper
89-12099
- Maximum capacity: 27 kg / 59 lbs
- Control system: balancing
- Weight: 10.5 kg / 23 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12099
- Serial no: A6660

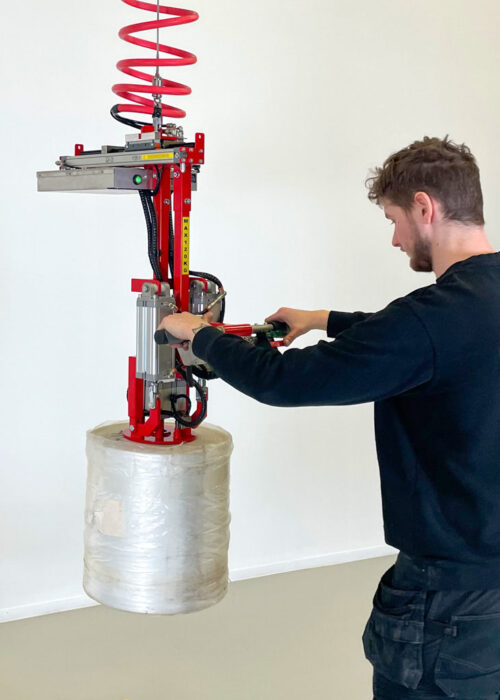

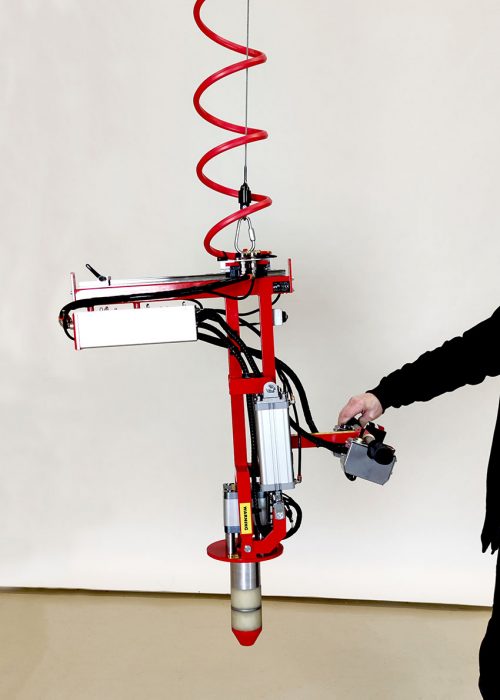

Roll Gripper
89-12155
- Maximum capacity: 40 kg / 80 lbs
- Controls: proportional speed control (PSH)
- Weight: 27 kg / 59 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12155
- Serial no: A6799

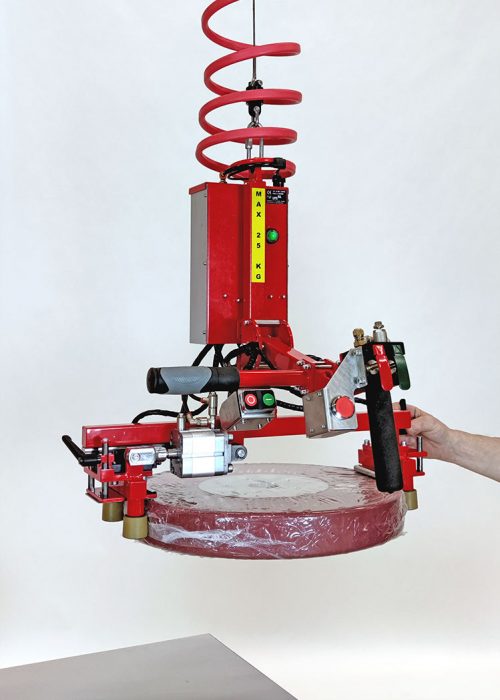

Weight plates gripper
89-12045
- Maximum capacity: 25 kg / 55 lbs
- Control: proportional speed control (PSH)
- Weight: 16 kg / 35 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12045
- Serial no: A6588

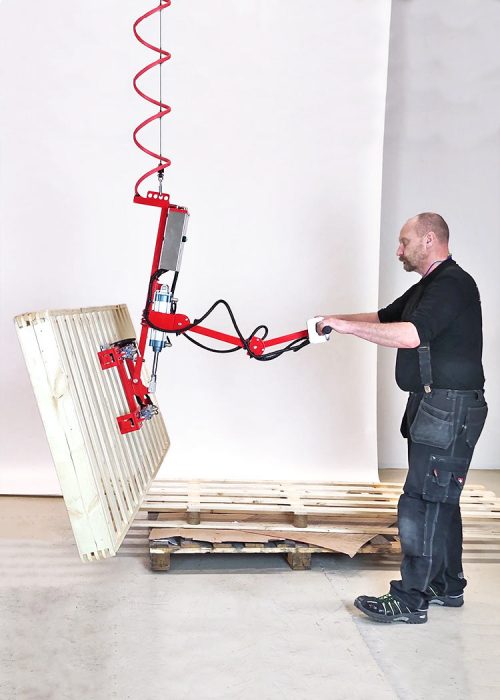

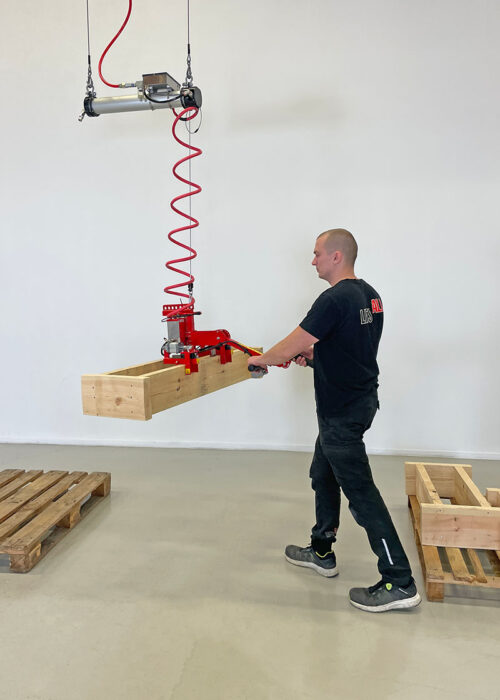

Lifting tool for wooden frames
89-12336
- Maximum capacity: 20 kg / 44 lbs
- Controls: proportional speed control (PSH)
- Weight: 65 kg / 35 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12336
- Serial no: A7152

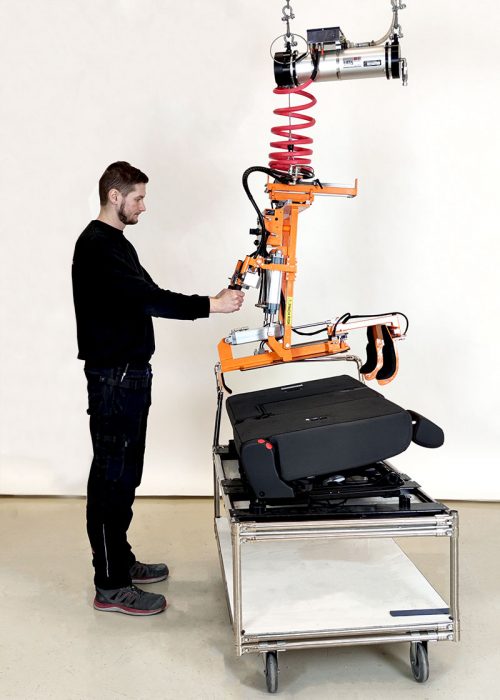

Gripper for car seats
89-10950
- Maximum capacity: 45 kg / 99 lbs
- Controls: proportional speed control (PSH)
- Own weight: 45 kg / 99 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10950
- Serial no: A6829

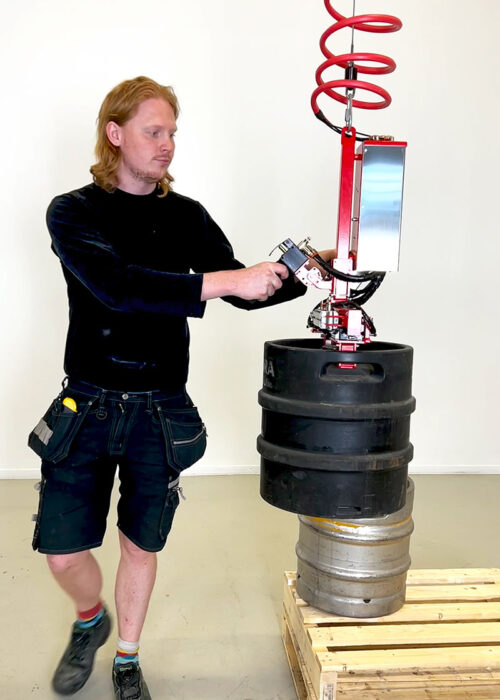

Keg gripper
92-10064
- Maximum capacity: 70 kg / 154.32 lbs
- Controls: proportional speed control (PSH)
- Weight: 12.10 kg / 26.68 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 92-10064

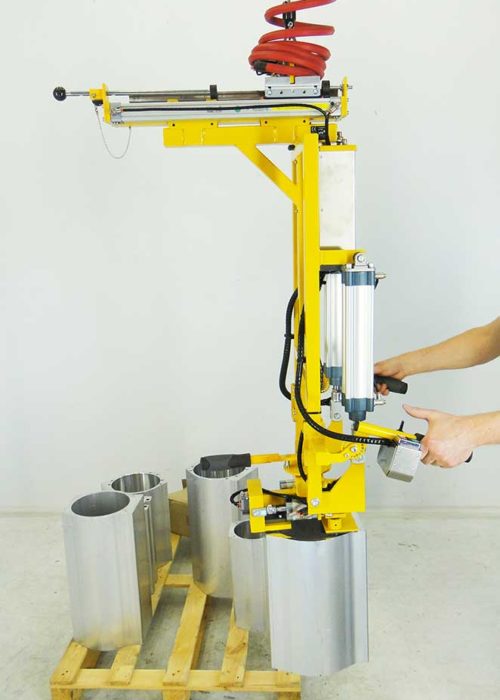

GRIPPER FOR CYLINDERS
4155
- Maximum capacity: 26 kg / 57 lbs
- Control system: proportional speed control (PSH)
- Weight: 39 kg / 86 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 4155
DOOR AND FRAME GRIPPER
3231
- Maximum capacity: 115 kg / 253 lbs
- Control system: proportional speed control (PSH)
- Weight: 79 kg / 174 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3231
BOTTLE GRIPPER
3533
- Maximum capacity: 38 kg / 84 lbs
- Control system: balancing
- Weight: 15 kg / 33 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3533
DOOR AND FRAME GRIPPER
3231
- Maximum capacity: 115 kg / 253 lbs
- Control system: proportional speed control (PSH)
- Weight: 79 kg / 174 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3231
BOTTLE GRIPPER
3533
- Maximum capacity: 38 kg / 84 lbs
- Control system: balancing
- Weight: 15 kg / 33 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3533

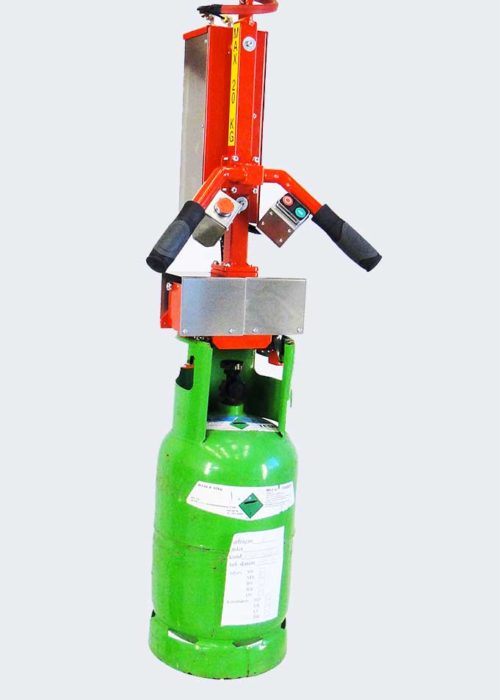

GAS TANK GRIPPER
3484
- Maximum capacity: 20 kg / 44 lbs
- Control system: balancing
- Weight: 9 kg / 20 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3484

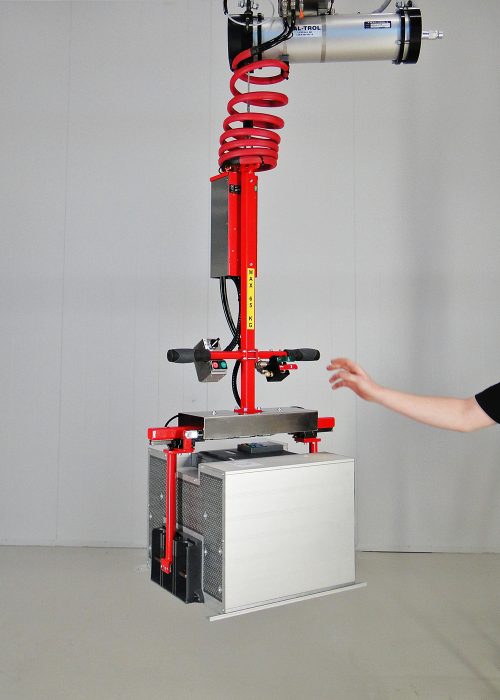

CONTACTOR GRIPPER
89-10325
- Maximum capacity: 65 kg / 143 lbs
- Control system: proportional speed control (PSH)
- Weigh: 16.5 kg / 36 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10325
- Serial no: 4757

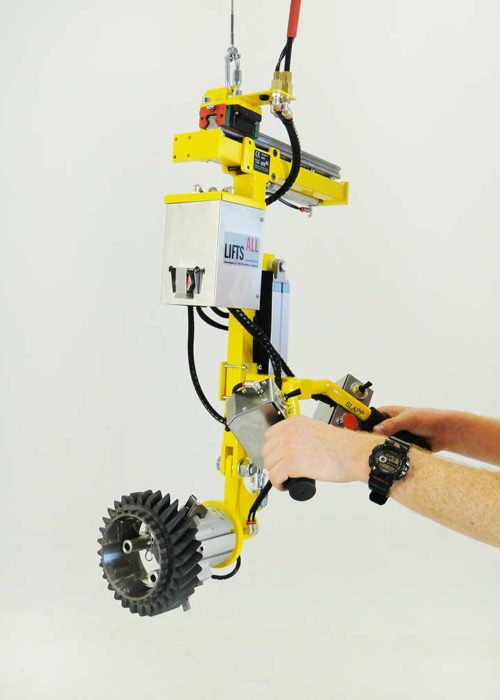

Gripper for
cogwheels
- Maximum capacity: 14 kg / 31 lbs
- Control system: balancing
- Weight: 11 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3481

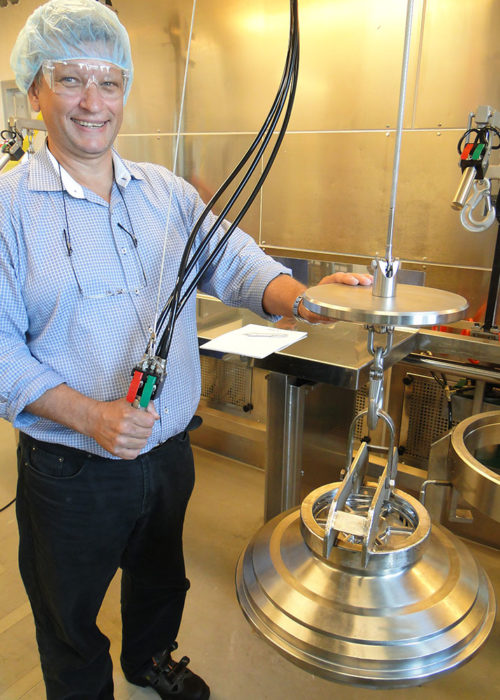

LIFTING TOOL FOR PHARMACEUTICALS
89-10059
- Maximum capacity: 80 kg / 176 lbs
- Control system: proportional speed control (PSH)
- Weight: 170 kg / 375 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10059
- Serial no: 4510
Roll
gripper
- Maximum capacity: 120 kg / 265 lbs
- Controls: proportional speed control (PSH)
- Weight: 32 kg / 71 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 92-10060-Mk2
- Serial no: A6930
A lifting tool for
boxes
- Maximum capacity: 30 kg / 66 lbs
- Control system: balancing
- Weight: 24 kg / 53 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10002
- Serial no: 4438

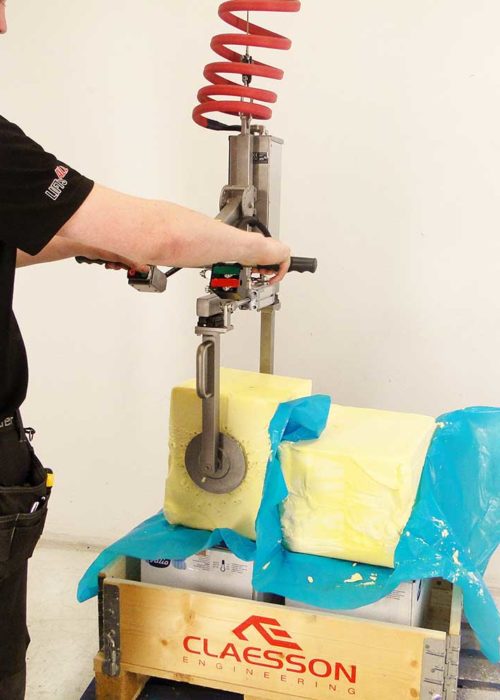

A lifting tool for
butter
- Maximum capacity: 25 kg / 55 lbs
- Control system: proportional speed control (PSH)
- Weight: 25 kg / 55 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10202
- Serial no: 4899

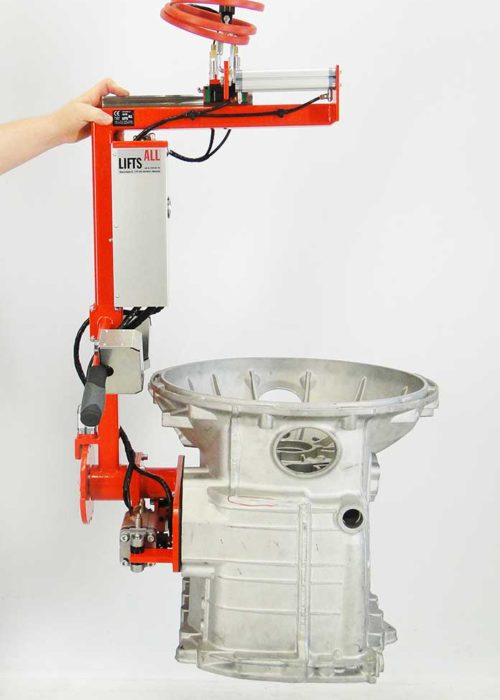

A lifting tool for
gearboxes
- Maximum capacity: 13 kg / 29 lbs
- Control system: balancing
- Weight: 11 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3797

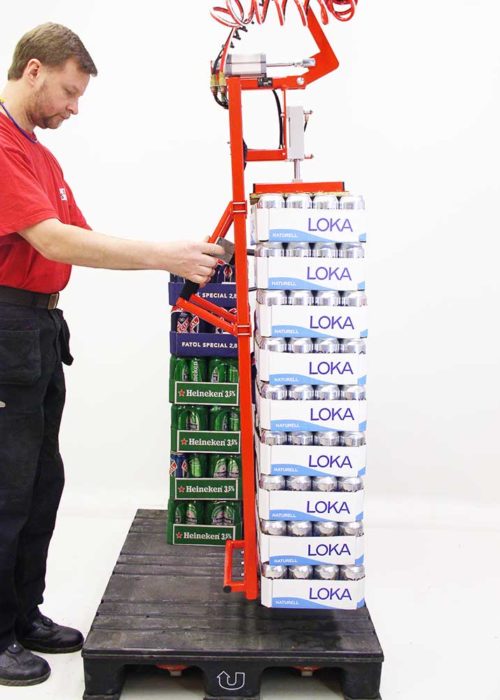

A lifting tool for cases of
beer and
other drinks
- Maximum capacity: 80 kg / 176 lbs
- Control system: balancing
- Weight: 21.5 kg / 47 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 2490
