INDEVA® Liftruck – Smart Handling on the Move

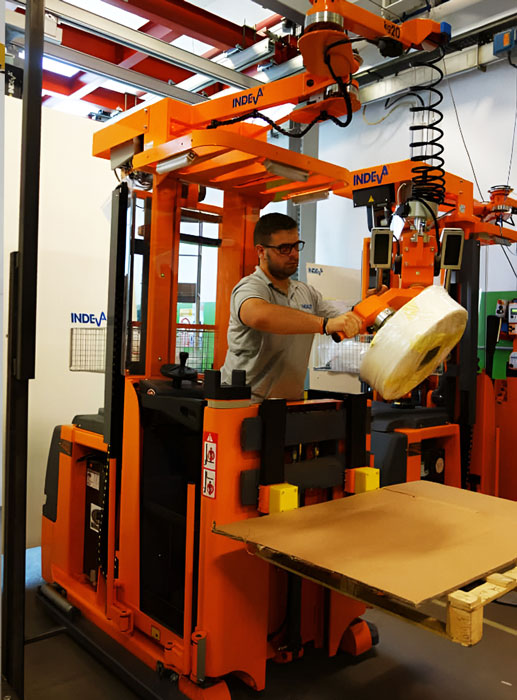

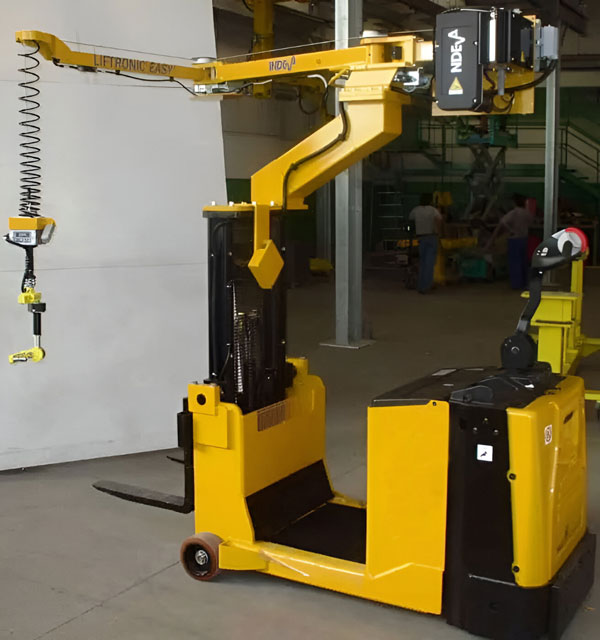

The INDEVA® Liftruck combines a pallet truck or order picker with an integrated Liftronic® electronic manipulator, featuring an articulated arm and orbital tool head—perfect for reel handling.
The orbital tool head with an expanding chuck ensures safe, precise placement—releasing only when the reel is securely positioned. The INDEVA® electronic balancer guarantees smooth and responsive movement.
The Liftruck can also be equipped with a vacuum gripper for safely lifting cardboard boxes, making it a versatile, efficient solution for various handling tasks.
Main Features
- Maximum load capacity: 50 kg
- Vertical lifting stroke: Up to 3000 mm
- Lifting speed: Up to 0.6 m/sec
- Electronic control system: 24V DC
- Power consumption: 700 VA
- Orbit-Arm® articulated arm with customizable lengths
- Gripping tool: Orbital tool head with expanding chuck, adjustable reel barycenter, and quick-change chuck system for handling reels from 70 to 150 mm in diameter
- Optional end-effector: Vacuum gripper for handling cardboard cases
Safety features:
- Failsafe mechanical lock in case of power loss
- Speed-limiting brake for controlled lowering
