Precision Handling with Pneumatic Power and Smart Control

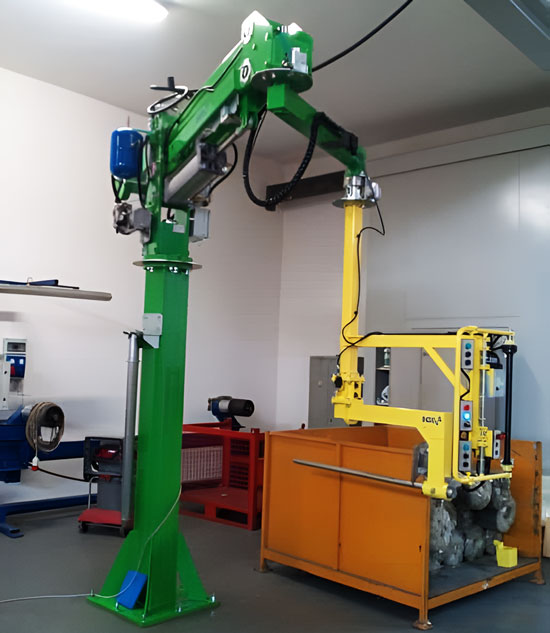

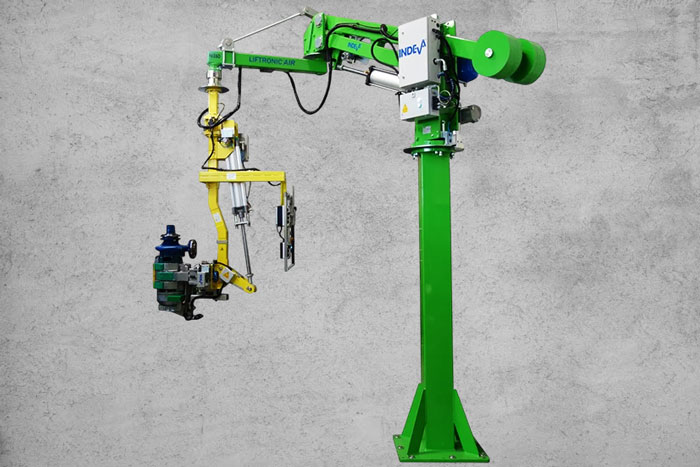

The column-mounted Liftronic® Air combines the strength of a pneumatic system with the precision of electronic control. Mounted securely on a floor column, it provides stable, ergonomic handling for offset or heavy loads.
This solution is ideal for workstations where space and safety matter—offering smooth, intelligent motion with the reliability of a fixed structure.
Main Features
- Air pressure 0,65 MPa (6,5 bar)
- Power supply 115/230V A/C 50/60Hz
- Power consumption 100VA
- Enclosure protection IP54
- Noise level < 70 dB(A)
- Lifting capacity limiter
- Lift speed from 15 to 30 m/min
- Main column axis brake
- Intermediate joint axis brake
- Column rotation 360°
- Tool axis rotation 550°
- Slow descent in case of pressure failure
- Balancing type: load preset or self balancing (it depends from the tooling)
