Lifting Tool for Gas Cylinders 89-12356
General Data
Maximum capacity: 100 kg/ 220 lbs
Controls: proportional speed control (PSH)
Weight: 22,5 kg/ 50 lbs
Media: 6-7 bars/ 90-100 psi
Article no: 89-12356
Serial no: A7192

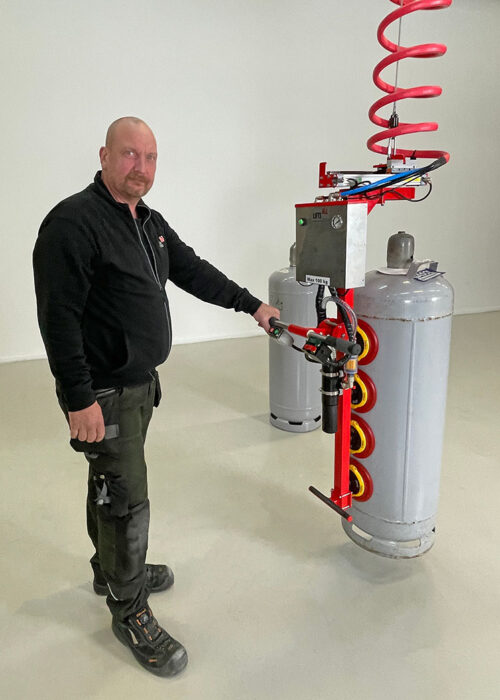

Lifts All’s lifting tool for gas cylinders effortlessly lifts up to 220 lbs / 100 kg. With the assistance of our gas cylinder lifting tool, businesses within the oil, gas or other industries can streamline their material handling processes and make the work more ergonomic for those handling gas cylinders.
Safe Handling of Heavy Gas Cylinders
Heavy gas cylinders require special handling and care to prevent accidents and injuries. Gas cylinder lifters are designed to handle heavy gas cylinders safely and efficiently. Industries that handle heavy gas cylinders, such as construction and oil and gas, require reliable and efficient lifting devices.
Our gas cylinder lifting tool is equipped with multiple safety features:
- The gripper runs on compressed air instead of electricity. There are no ignition sources in the gripper, which means this device doesn’t require ATEX certification. If necessary, a Lifts All ‘Declaration of exemption’ can be provided upon request.
- Handling gas cylinders is very sensitive work. They should not be exposed to shocks or impacts. The gas cylinder gripper is designed to handle the load gently and securely, and includes a load guard that ensures a slow descent of the load if the pressure drops in the system.
- The gripper uses vacuum suction cups for gripping instead of mechanical clamps. As a result, the cylinders remain undamaged, free from scratches and marks.
User-Friendly Design
The lifting tool is highly user-friendly, featuring intuitive controls and a clear instruction manual. This ensures that the operator quickly becomes proficient with the tool, reducing the learning curve and enhancing productivity. If any questions arise, Lifts All is always available to explain how to operate the tool.
Using a cylinder lifter offers numerous benefits, including enhanced safety, increased efficiency, and reduced workplace injuries. By providing a mechanical advantage, these lifters minimize the risk of manual handling injuries, such as lower back, shoulder, and elbow strains. Additionally, cylinder lifters streamline operations, increasing productivity and reducing the time spent on handling gas cylinders.
