Lifting High
General Data
Lifts All’s high-lifting gripper, the Manhattan, also known as the Mini-Truck, is the perfect lifting tool when you need to lift high up and/or into narrow spots. The Manhattan’s purposeful construction is what makes it an essential lifting tool. It can lift most loads effortlessly and is widely used in warehouses where normal forklifts or pallet lifts are just too bulky. For example, bakeries have purchased the Manhattan to lift and stack bakery trays.

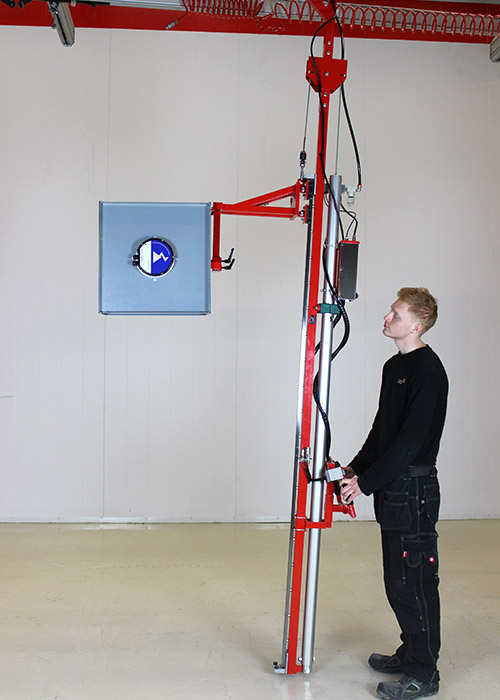

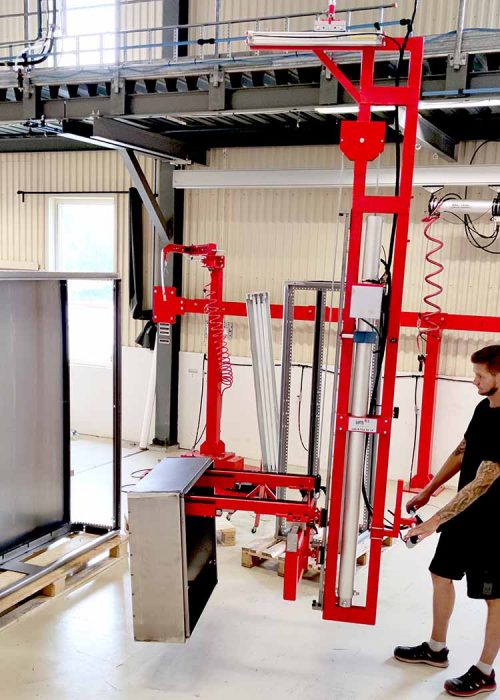

Manhattan Cabinet Gripper
89-12105
- Maximum capacity: 150 kg / 331 lbs
- Controls: proportional speed control (PSH)
- Weight: 148 kg / 309 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12105
- Serial no: A6741

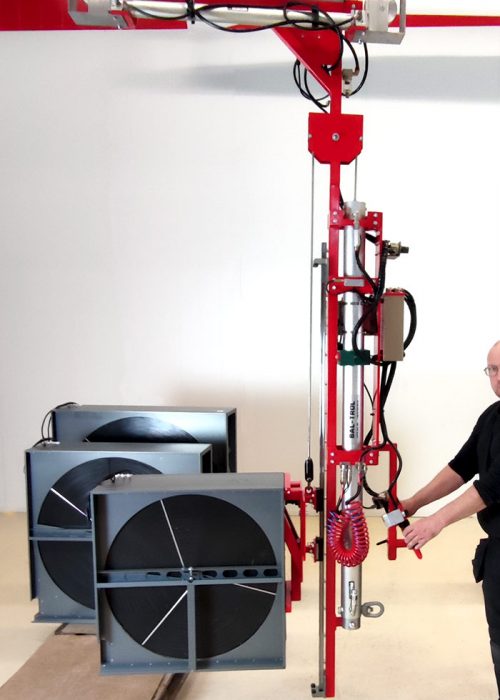

Manhattan Combi-Gripper
for Rotors
89-12106
- Maximum capacity: 140 kg / 309 lbs
- Control system: proportional speed control (PSH)
- Weight: 100 kg / 220 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12106
- Serial no: A6706
Manhattan combi-gripper 5984
- Maximum capacity kg: 50 / 35
- Maximum capacity lbs: 110.23 / 77
- Controls: proportional speed control (PSH)
- Weight: 47 kg (+7 incl. application) / 104 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11763
- Serial no: 5948

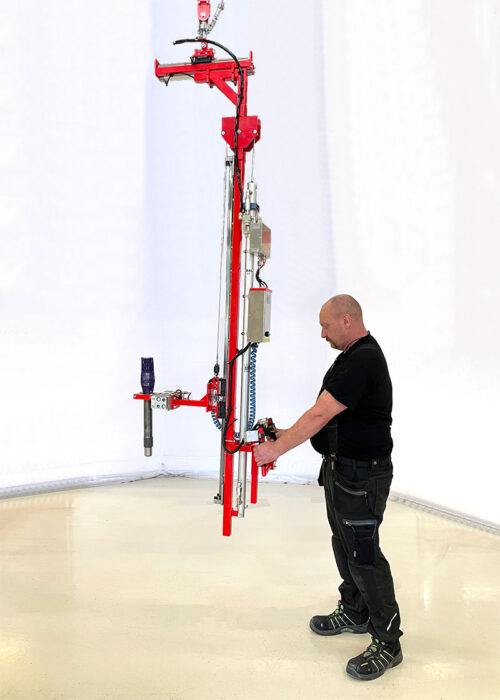

Manhattan Drill Gripper
89-12197
- Maximum capacity: 13.5 kg / 30 lbs
- Controls: proportional speed control (PSH)
- Own weight: 50.5 kg / 111 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12197
- Serial no: A6883

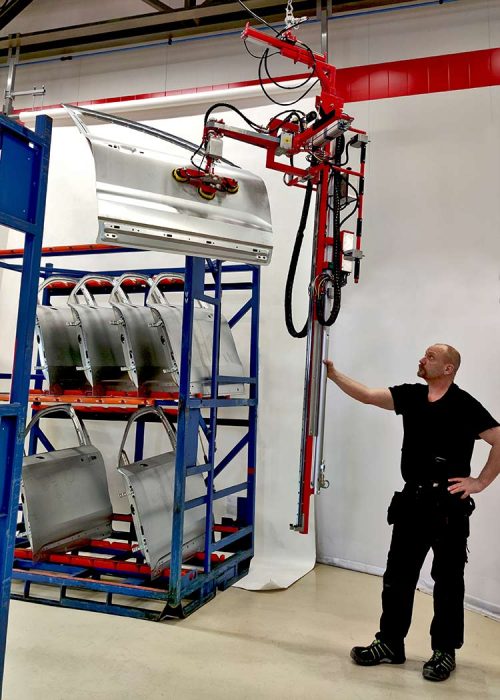

Manhattan Car Door Lift
89-12025
- Maximum capacity: 30 kg / 66 lbs
- Control system: balancing
- Weight: 138 kg / 304 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12025
- Serial no: A-6558
Manhattan Mini
89-12052
- Maximum capacity: 30 kg / 66 lbs
- Controls: proportional speed control (PSH)
- Weight: 45 kg / 99 lbs
- Media: 6–7 bar / 90–100 psi
- Article number: 89-12052
- Serial number: A6605
Manhattan Cardboard Box Gripper
89-11789
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Weight: -
- Media: 6–7 bar / 90–100 psi
- Article number: 89-11789
- Serial number: 5924

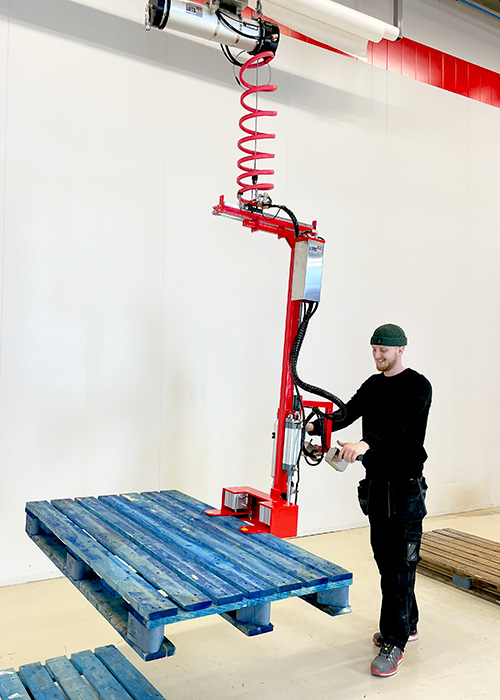

Pallet turner
89-12421
- Maximum capacity: 45 kg / 99 lbs
- Controls: proportional speed control (PSH)
- Own weight: 50 kg / 110 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12421 (alt. 89-12176)
- Serial no: A7356 (alt. A6842)

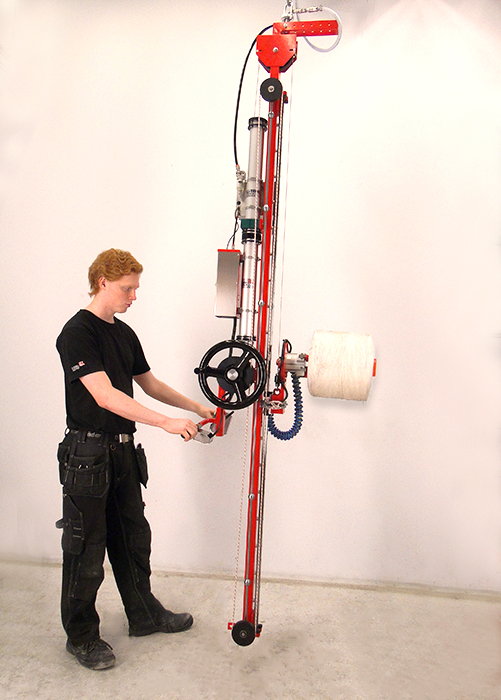

MANHATTAN ROLL GRIPPER
89-11789
- Maximum capacity: 14 kg / 31 lbs
- Controls: balancing
- Weight: 53 kg / 117 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10117
- Serial no: 4565

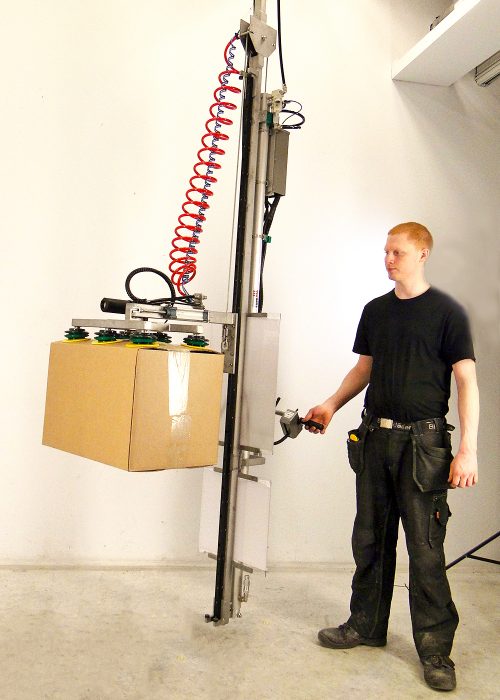

MANHATTAN BOX GRIPPER
89-10465
- Maximum capacity: 40 kg / 88 lbs
- Controls: proportional speed control (PSH)
- Weight: 77 kg / 170 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10465
- Serial no: 4947

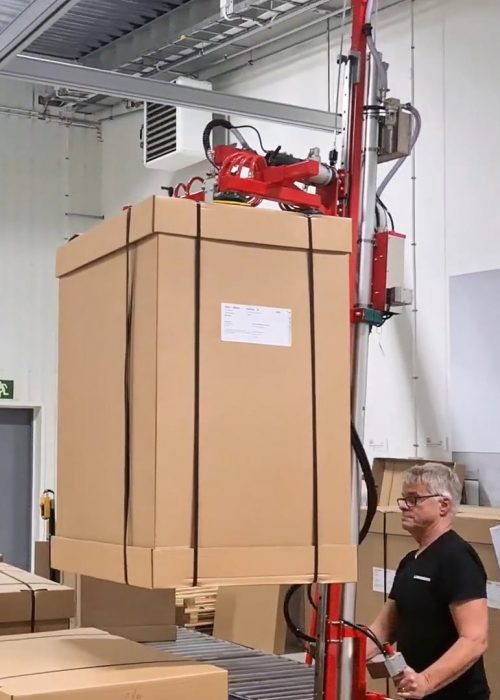

MANHATTAN CARTON BOX GRIPPER
89-10224
- Maximum capacity: 40 kg / 88 lbs
- Controls: proportional speed control (PSH)
- Weight: 70 kg / 154 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10224
- Serial no: 4693

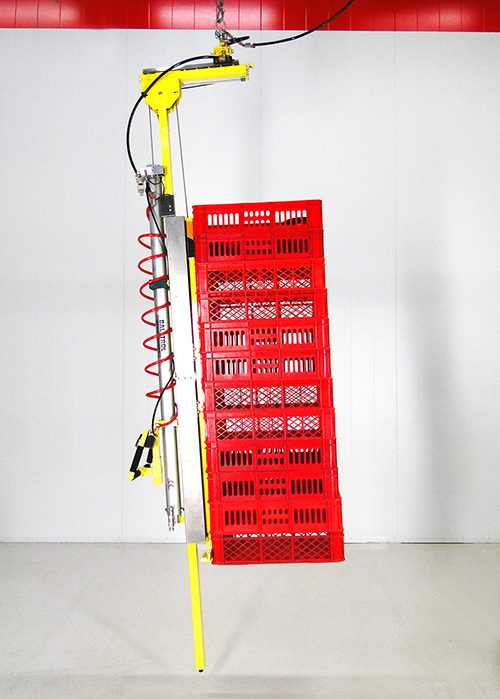

MANHATTAN TRAY GRIPPER
89-10310
- Maximum capacity: 96 kg / 212 lbs
- Controls: proportional speed control (PSH)
- Weight: 75 kg / 165 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10310
- Serial no: 4826
MANHATTAN STONE BLOCK GRIPPER
89-10288
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Media: 6–7 bar / 90–100 psi
- Weight: 70 kg / 154 lbs
- Article no: 89-10288
- Serial no: 4743
