Combi Grippers
General Data
For those who need to lift different types of products but perhaps can only have one tool installed, a combination gripper is something to consider. This lifting tool is multi-faceted and can be customised to lift different products just by changing the lifting application

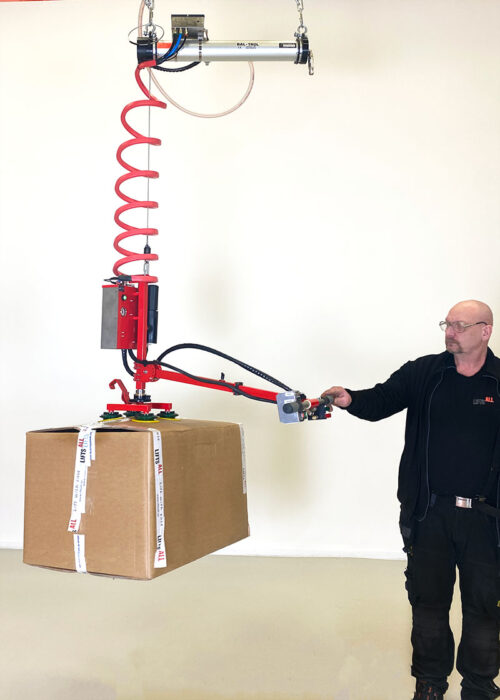

Combi-Gripper for Boxes
89-12283
- Maximum capacity: 50 kg / 110 lbs
- Control system: proportional speed control (PSH)
- Weight: 12.5 kg / 28 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12283
- Serial no: A7092

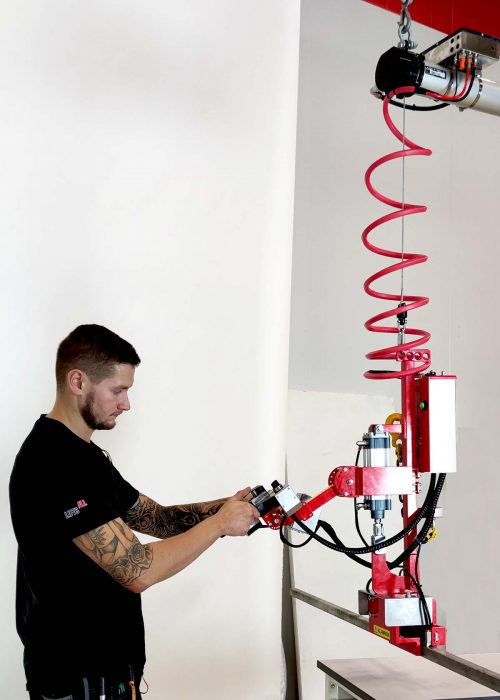

Combi-gripper for Metal Bars
89-12130
- Maximum capacity: 23 kg / 51 lbs
- Control system: proportional speed control (PSH)
- Weight: 25 kg / 55 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12130
- Serial no: A6753
Combi-Gripper for Ventilators
89-12266
- Maximum capacity: 24 kg / 53 lbs
- Controls: proportional speed control (PSH)
- Weight: 24 kg / 53 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12266
- Serial no: A6993/A6994

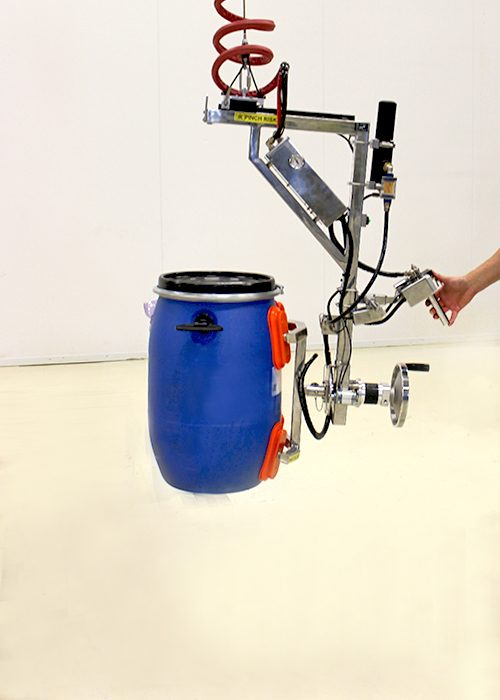

Combi-gripper for barrels and
containers
89-11989
- Maximum capacity: 200 kg / 441 lbs
- Controls: proportional speed control (PSH)
- Weight: 28 kg / 62 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11989
- Serial no: A6567

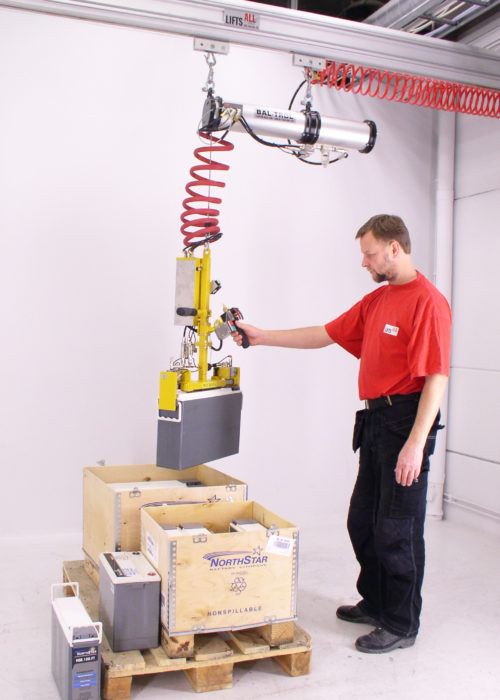

A combi-gripper for batteries
3328
- Maximum capacity: 64 kg / 141 lbs
- Control system: proportional speed control (PSH)
- Weight: 7 kg / 15 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3328

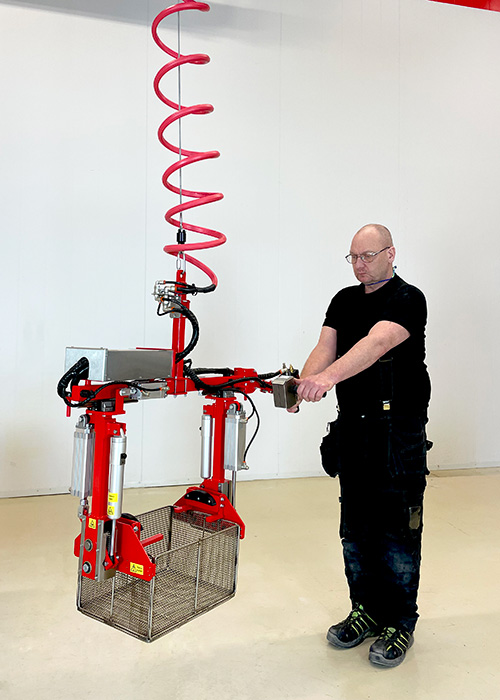

Gripper for Wire Baskets
89-12125
- Maximum capacity: 50 kg / 110 lbs
- Controls: proportional speed control (PSH)
- Own weight: 33 kg / 73 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12125
- Serial no: A6747

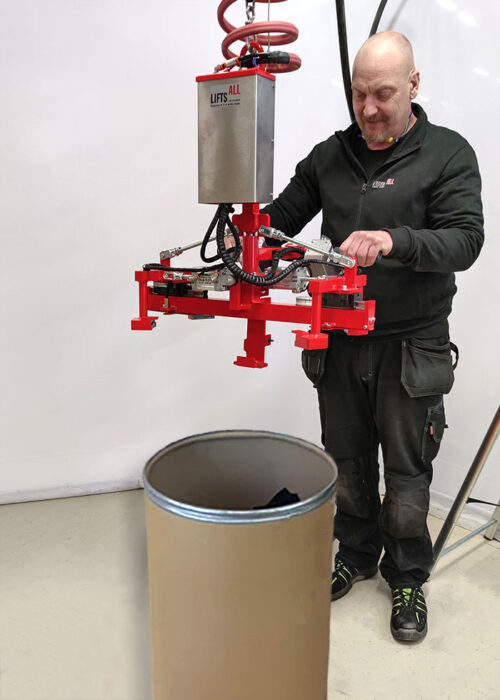

Combi-gripper for drums
89-11470
- Maximum capacity: 70 kg / 154 lbs
- Control system: proportional speed control (PSH)
- Weight: 24 kg / 53 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-11470
- Serial no: 5808

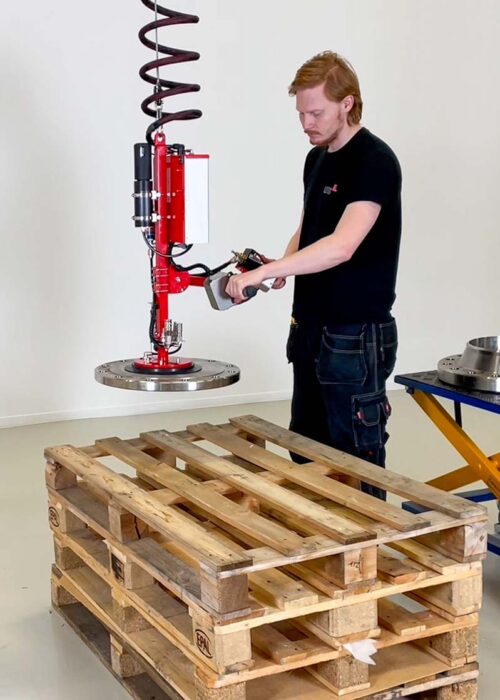

Combi-Gripper for Flanges
89-12261
- Maximum capacity kg: 40 / 63 / 79
- Maximum capacity lbs: 88 / 139 / 174
- Control: proportional speed control (PSH)
- Weight: 11.1 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-12261
- Serial no: A6987 / 6988

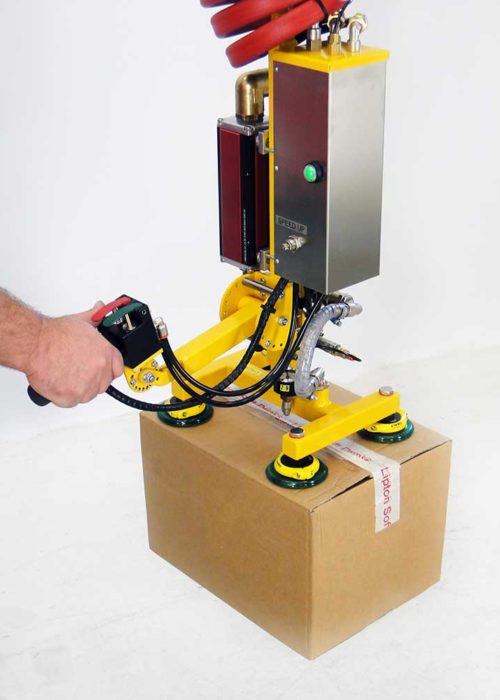

Sack and carton combi-gripper
3675
- Maximum capacity: 25 kg / 55 lbs
- Control system: proportional speed control (PSH)
- Weight: 11 kg / 24 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 3675

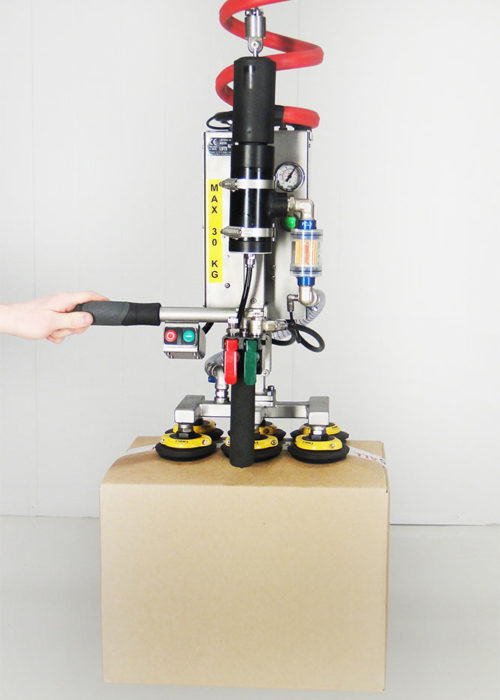

Sack and carton combi-gripper
89-10330
- Maximum capacity: 30 kg / 66 lbs
- Control system: proportional speed control (PSH)
- Weight: 7 kg / 15.43 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: 89-10330
- Serial no: 4780
Box and bucket combi-gripper
2623
- Maximum capacity: 25 kg / 55 lbs
- Control system: proportional speed control (PSH)
- Weight: 6.5 kg / 14 lbs
- Media: 6–7 bar / 90–100 psi
- Article no: -
- Serial no: 2623
